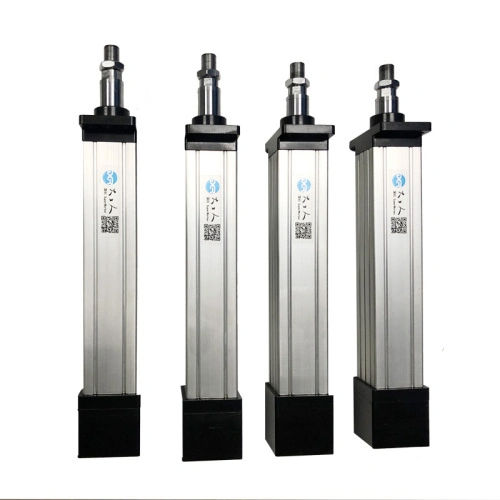

Electric cylinder DGRLT-93ball screwaluminumindustrial
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- ball screw
- Material
- aluminum
- Applications
- industrial
- Other characteristics
- precision, high-speed, high-force, in-line
- Stroke
Max.: 1,500 mm
(59.055 in)Min.: 10 mm
(0.394 in)- Rod diameter
25 mm
(1 in)- Force
2.04 kN, 3.06 kN, 5.1 kN, 7.6 kN, 10.2 kN
- Torque
9.55 Nm, 14.32 Nm, 28.64 Nm, 38.2 Nm, 47.75 Nm
(7.044 ft.lb, 10.562 ft.lb, 21.124 ft.lb, 28.175 ft.lb, 35.219 ft.lb)- Speed
250 mm/s, 1,000 mm/s
- Repeatability
0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)
Description
Electric Cylinder DGRLT-93 is intended for light duty and comparatively higher force applications. DGRLT93 High Thrust Force Linear Actuator can reach 1000mm/s ultra high speed and no less than 8KN heavy duty, directly driven by planetary ball screw for use in industrial automation.It adopts simple but precise design model,offering customers a nice experience in practical use; it comes without an anti-rotation machanism by default, but the function can be added; The feature of the cylinder: high-precision, easy to be equipped with, flexible. Samples can be supported to deliver to your contry after you done the payment. Shape: Inline/parallel
