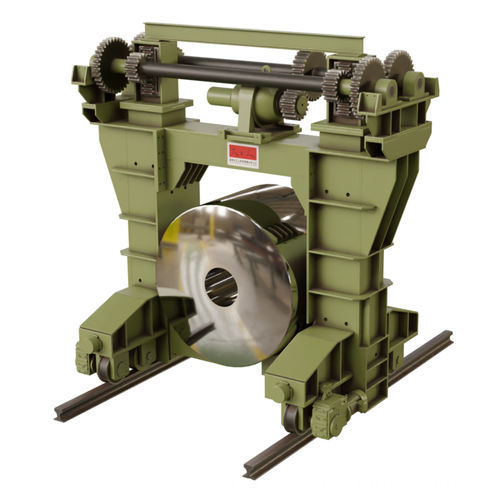

Coil lifting unit

electricmobiletransport

Pure electric gantry transport coil vehicle(Coil Logistics Transportation System) 1. Method of taking coil(Coil Logistics Warehousing System): The child vehicle runs to the bottom of coil and lifts it up; 2. Method of transporting coil(Coil Logistics Transportation Car): The lifting saddle carries the steel coil, and the vehicle moves in a straight line; 3. PLC system: The vehicle comes with a built-in PLC system, which enables wireless data transmission with the base station; 4. Detection system: It has the function of self detecting the diameter and width of coil; 5. Vehicle monitoring: Equipped with a vehicle monitoring system to monitor the status of loading and unloading coils in real-time; 7. Anti collision detection: The vehicle has anti collision detection function; 8. Power supply methods: There are three power supply modes to choose from: sliding contact line power supply, cable tray power supply, and charging battery power supply; 9. Positioning function: With laser distance detection and positioning, scale detection and positioning, proximity switch detection and positioning, multiple positioning modes cooperate to achieve precise positioning; 10. Contact method: The surface of the vehicle's track is flush with the ground; 11. Contact method: The left and right lifting saddles are synchronously driven by gears and racks, and the motor drives the gear transmission to achieve the lifting movement of the saddle.
