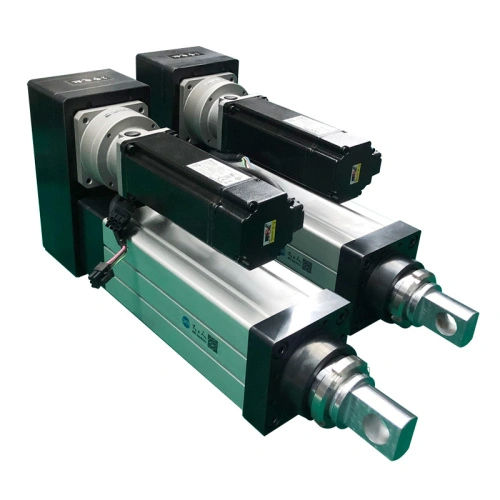

Electric cylinder DGRST-75steelDC24 V
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Material
- steel
- Motor
- DC
- Voltage
- 24 V, 48 V
- Other characteristics
- standard, in-line
- Stroke
Max.: 1,000 mm
(39.37 in)Min.: 10 mm
(0.394 in)- Rod diameter
20 mm
(1 in)- Force
1.28 kN, 1.36 kN, 2.03 kN, 2.55 kN, 3.83 kN
- Torque
1.27 Nm, 1.91 Nm, 2.39 Nm, 3.18 Nm, 4.78 Nm
(0.937 ft.lb, 1.409 ft.lb, 1.763 ft.lb, 2.345 ft.lb, 3.526 ft.lb)- Motor power
400 W, 750 W, 1,000 W
(0.54 hp, 1.02 hp, 1.36 hp)- Speed
166 mm/s, 250 mm/s, 500 mm/s, 666 mm/s, 1,000 mm/s
- Repeatability
0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)
Description
Electric Cylinder DGRST75 can be worked in wet environment without getting rusty and ill-operated, so it has advanced protection capability. The inside of the cylinder body is a pair of high-strength tapered roller bearings that meet both thrust and tension conditions; It is eqquiped with anti-rotation structure; Electric Linear Automation For Applications can has different usage. With a proven track record of delivering consistent and reliable performance, this standard electric cylinder has established itself as a trusted and market-leading product.
24V 48V DC Linear Actuator:
You can check the two types of the linear Actuator:Inline and parallel.
Catalogs
No catalogs are available for this product.
See all of Shenzhen Packway Technology Development Co., LTD‘s catalogsOther Shenzhen Packway Technology Development Co., LTD products
Electric Cylinder With Ball Screw
