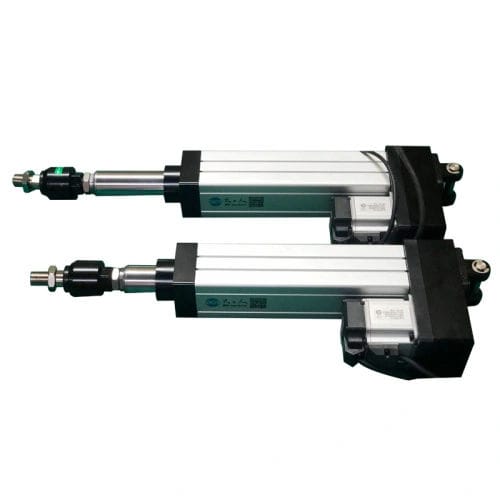

Actuator with piston rod DGRST-55
linearelectricaluminum profile

Actuator with piston rod - DGRST-55 - Shenzhen Packway Technology Development Co., LTD - linear / electric / aluminum profile
Actuator with piston rod - DGRST-55 - Shenzhen Packway Technology Development Co., LTD - linear / electric / aluminum profile
Actuator with piston rod - DGRST-55 - Shenzhen Packway Technology Development Co., LTD - linear / electric / aluminum profile - image - 2
Actuator with piston rod - DGRST-55 - Shenzhen Packway Technology Development Co., LTD - linear / electric / aluminum profile - image - 3
Actuator with piston rod - DGRST-55 - Shenzhen Packway Technology Development Co., LTD - linear / electric / aluminum profile - image - 4
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Technology
with piston rod
Material
aluminum profile
Motor
DC, AC
Voltage
24 V, 12 V
Applications
industrial
Other characteristics
standard, wide
Stroke

Max.: 800 mm
(31.496 in)

Min.: 10 mm
(0.394 in)

Rod diameter

16 mm
(1 in)

Force

1.36 kN, 2.03 kN, 1,380 kN

Torque

1.27 Nm, 1.91 Nm
(0.937 ft.lb, 1.409 ft.lb)

Motor power

400 W
(0.54 hp)

Speed

166 mm/s, 250 mm/s

Repeatability

0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)

Description

Electric Cylinder DGRST55 installed with 400W servo motor with controller 12-24V DC, AC 220V. The model can be used for Automation vehicle and medical facility. ST means standard type of Linear Actuator. We devote to design and produce very standard and widely-used model for you to choose; It comes with anti-rotation structure by default; DGRST55 is made of aluminum profile material,square shape, which has beautiful appearance and texture,with more sturdy and durable performance than the general ordinary ones. High Precision Linear Actuator/Electric Cylinder For Industrial Machinery: Its maximum rated speed reaches 250mm/s, effective stroke 10-800mm. You can choose Inline type or Parallel type for different usage with regard to its shape. This high-quality actuator offers a very strong alternative to hydraulic solutions. High Reliability Multiple security measures Long Life Run over a distance of 100,000km Wide Thrust Range Select famous branded rollerball screws, ball screws, and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force. Careful Material Selection 1. Use round carbon steel as the cylinder material 2. Select sensor components of internationally famous brands. 3. Key components are made of high-quality materials and processed with vacuum heat treatment or surface treatment (including coating, azotizing, oxidation) 4. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure 5. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
