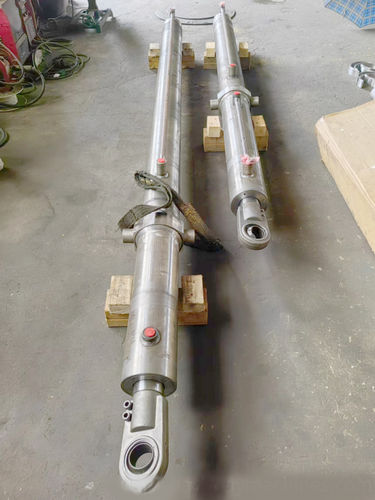

Hydraulic cylinder

telescopicpistondouble-acting

hydraulic cylinder is a hydraulic actuator that converts hydraulic energy into mechanical energy and performs linear reciprocating motion (or swing motion). It has a simple structure and reliable operation. When using it to achieve reciprocating motion, there is no need for a deceleration device, and there is no transmission gap, making the motion smooth. Therefore, it is widely used in various mechanical hydraulic systems. In industrial production, engineering hydraulic cylinders are divided into piston type, plunger type, and telescopic sleeve type according to their structural forms; According to the form of motion, it can be divided into reciprocating straight line type and swinging type; According to the mode of action, it can be divided into two types: double acting and single acting. Hydraulic Cylinder Selection Determine the degree of corrosion and dust prevention of the Hydraulic Oil Cylinder based on its working status, such as temperature, humidity, etc. The required output, load condition, stroke size, working system, etc. of a hydraulic cylinder can be used to determine the size of the piston and piston rod of the hydraulic cylinder, as well as the ultimate strength verification and fatigue life calculation of the hydraulic cylinder. The selected working pressure and flow rate of the hydraulic system; Assist in determining the main dimensions of oil cylinders, such as pistons and connecting rods. After determining the materials of each main component, the wall thickness of the hydraulic cylinder barrel and the diameter of the hydraulic piston rod can be calculated based on the output requirements and material strength of the hydraulic cylinder.
