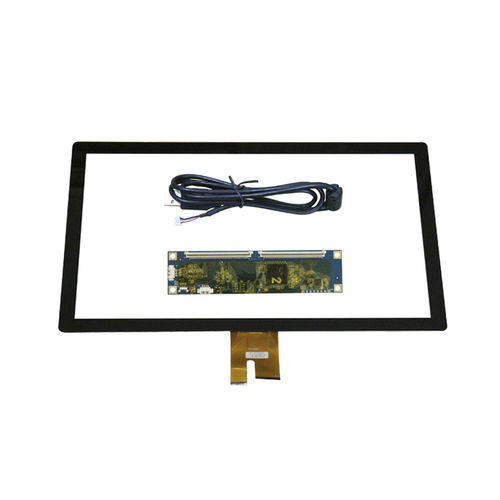

The projected capacitive touch screen product consists of a glass touch screen panel,an IC controller (COB or COF) and a connection cable,3 components a set.
Parameters
Item: 15.6 Inches Capacitive Touch Screen Panel
Structure: GG
IC Solution: EETI / ILITEK
IC Connection: COB
Scale: 16:9
Cover Glass O.D.(L*W*T): 387mm * 231mm * 3mm
Visual Area (L*W): 344mm * 194mm
Sensor Glass O.D. (L*W*T): 358.23mm * 209.54mm * 0.7mm
FPC Thickness: 0.3mm
Total Thickness: 3.95mm
Hardness: ≥6H
Transmition: ≥85%
Operation Condition: -10 ℃ ~ +60 ℃, ≤85%RH
Storage Condition: -20 ℃ ~ +70 ℃, ≤85%RH
Humidity Range: 45~85%RH
Input Method: Finger or Cap. Stylus
Interface: USB,I2C,Rs232
Touch points: 10 points
Input voltage: 5 V
Operating System: Win7,Win8,Win10,WinXP,WinCE,Android,Linux,Mac ect.
Custom Made: Available.Supports AG/AR/AF cover glass surface treatment,gloved finger touch,water touch etc.
Applications:
1.Commercial touch screen devices, advertising touchscreen,kiosk all-in-one machine,POS etc.
2.Industrial touch screen PC, tablet,computer.
3.Intelligent education system,classroom digital device,interactive whiteboard.
4.Bank,hospoital,airport queuing self-service terminals.
5.Smart home,smart restaurant,smart touchscreen mirror,touch screen refrigerator etc.
6.Smart city,information inquiry touchscreen machine etc.
Advantage of projected capacitive touch screen:
1.sensitive and accurate.
2.strong and durable,sturdy tempered cover glass,vandal resistant.
3.smooth gestures,no pressure force for detection.
4.long product life,no moving parts in operation.
5.multi-touch points.
6.excellent optical property.
