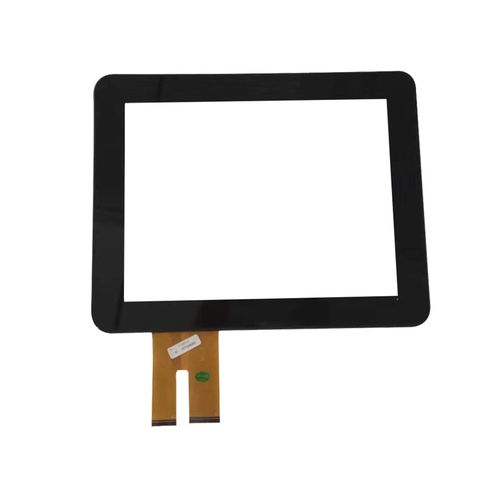

Capacitive touch screen PC1040101

10.4"projective capacitive multi-touch screen

The projected capacitive touch screen product consists of a glass touch screen panel,an IC controller (COB or COF) and a connection cable,3 components a set.The glass touch screen panel can be made as GG (glass on glass) structure or GFF (glass-film-film) structure according to customer requirements. Parameters Item: 10.4 Inches Capacitive Touch Screen Model: PC1040101 Size: 10.4 inches Structure: GG IC Solution: ILITEK IC Connection: COB Scale: 4:3 Cover Glass O.D.(L*W*T): 242.2mm * 189.4mm * 2mm Visual Area (L*W): 212.2mm * 159.4mm Sensor Glass O.D. (L*W*T): 223.2mm * 172.4mm * 0.7mm FPC Thickness: 0.3mm Total Thickness: 2.9mm Hardness: ≥6H Transmition: ≥85% Operation Condition: -10 ℃ ～ +60 ℃, ≤85%RH Storage Condition: -20 ℃ ～ +70 ℃, ≤85%RH Humidity Range: 45~85%RH Input Method: Finger or Cap. Stylus Interface: USB,I2C,Rs232 Touch points: 10 points Input voltage: 5 V Operating System: Win7,Win8,Win10,WinXP,WinCE,Android,Linux,Mac ect. Custom Made: Available.Supports AG/AR/AF cover glass surface treatment,gloved finger touch,water touch etc. Advantage of projected capacitive touch screen: 1.sensitive and accurate. 2.strong and durable,sturdy tempered cover glass,vandal resistant. 3.smooth gestures,no pressure force for detection. 4.long product life,no moving parts in operation. 5.multi-touch points. 6.excellent optical property.
