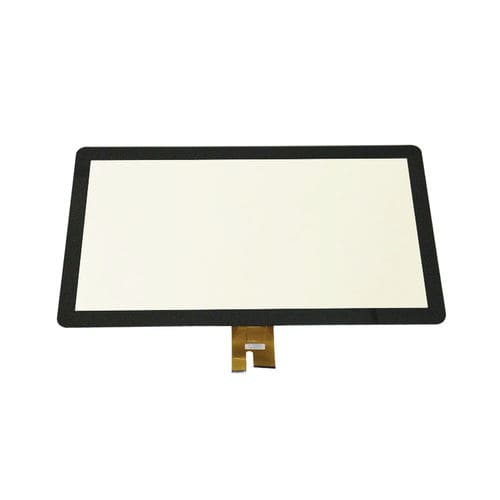

Capacitive touch screen customize

projective capacitive multi-touch screenindustrial

Customize Smart Mirror Surface Capacitive Touch Screen The projected capacitive touch screen product consists of a glass touch screen panel,an IC controller (COB or COF) and a connection cable,3 components a set.The glass touch screen panel can be made as GG (glass on glass) structure or GFF (glass-film-film) structure according to customer requirements.GG structure is a front cover glass with a conductive ITO (Indium Tin Oxide)glass which has a charged matrix,GFF structure is also a front cover glass with 2 layers of ITO films.Projected capacitive touch screen can detect the place with small change of capacitive field when a finger touches it then realize the touch control.The touch controller is using EETI or ILITEK chip with written firmware to support the touch operation well on a HMI (human machine interface) display device. Applications: 1.Commercial touch screen devices, advertising touchscreen display,kiosk all-in-one machine,POS etc. 2.Industrial touch screen PC,touch screen tablet,touch screen computer. 3.Intelligent education system,classroom digital device,interactive whiteboard. 4.Bank,hospoital,airport queuing self-service terminals. 5.Smart home,smart restaurant,smart touchscreen mirror,touch screen refrigerator,touch screen order machine etc. 6.Smart city,information inquiry touchscreen machine etc. Advantage of projected capacitive touch screen: 1.sensitive and accurate. 2.strong and durable,sturdy tempered cover glass,vandal resistant. 3.smooth gestures,no pressure force for detection. 4.long product life,no moving parts in operation. 5.multi-touch points. 6.excellent optical property.
