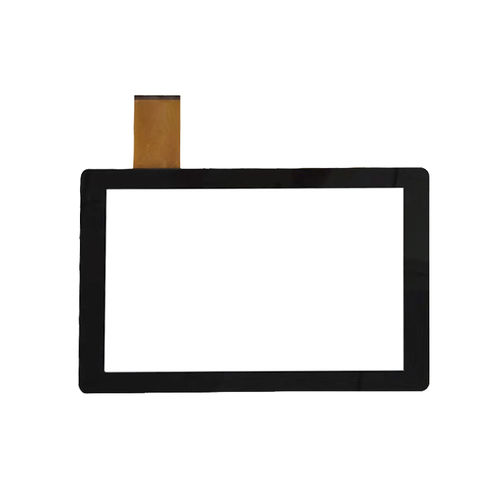

Capacitive touch screen PC0076222

7"projected capacitive touchscreen

The projected capacitive touch screen product consists of a glass touch screen panel,an IC controller (COB or COF) and a connection cable,3 components a set.The glass touch screen panel can be made as GG (glass on glass) structure or GFF (glass-film-film) structure according to customer requirements. Parameters Item: GG Glass 7 Inch Capacitive Touch Screen Digitizer Model: PC0076222 Size: 7 inches Structure: GG IC Solution: ILITEK IC Connection: COB/COF Scale: 16:10 Cover Glass O.D.(L*W*T): 185mm * 126mm * 2mm Visual Area (L*W): 152.5mm * 91.5mm Sensor Glass O.D. (L*W*T): 162.1mm * 101.3mm * 0.7mm FPC Thickness: 0.3mm Total Thickness: 2.85mm Hardness: ≥6H Transmition: ≥85% Operation Condition: -10 ℃ ～ +60 ℃, ≤85%RH Storage Condition: -20 ℃ ～ +70 ℃, ≤85%RH Humidity Range: 45~85%RH Input Method: Finger or Cap. Stylus Interface: USB,I2C,Rs232 Touch points: 10 points Input voltage: 5 V Operating System: Win7,Win8,Win10,WinXP,WinCE,Android,Linux,Mac ect. Custom Made: Available.Supports AG/AR/AF cover glass surface treatment,gloved finger touch,water touch etc.
