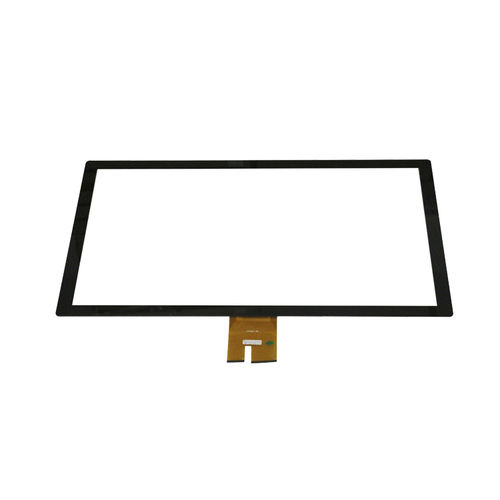

Capacitive touch screen PC03281B2

32"projective capacitive multi-touch screensurface wave

Projected capacitive(PCAP) touch screen panel can detect the place with small change of capacitive field when a finger touches it to realize the touch control.The touch controller is using EETI or ILITEK chip with written firmware to support the touch operation well on a HMI (human machine interface) display device. One of the main applications of the PCAP touch screen panel is for new commercial advertising display or new retailing device，all kinds of touchscreen kiosks,POS,self-service terminals. Item: Multitouch 32 Inches Capacitive Touch Screen Overlay Panel For Kiosks Model: PC03281B2 Size: 32 inches Structure: GG IC Solution: EETI / ILITEK IC Connection: COB Scale: 16:9 Cover Glass O.D.(L*W*T): 754.7mm * 449.3mm * 3mm Visual Area (L*W): 698.7mm * 393.3mm Sensor Glass O.D. (L*W*T): 721.5mm * 416.65mm * 1.1mm FPC Thickness: 0.3mm Total Thickness: 4.35mm Hardness: ≥6H Transmition: ≥85% Operation Condition: -10 ℃ ～ +60 ℃, ≤85%RH Storage Condition: -20 ℃ ～ +70 ℃, ≤85%RH Humidity Range: 45~85%RH Input Method: Finger or Cap. Stylus Interface: USB,I2C,Rs232 Touch points: 10 points Input voltage: 5 V Operating System: Win7,Win8,Win10,WinXP,WinCE,Android,Linux,Mac ect. Custom Made: Available.Supports AG/AR/AF cover glass surface treatment,gloved finger touch,water touch etc. Advantage of projected capacitive touch screen: 1.sensitive and accurate. 2.strong and durable,sturdy tempered cover glass,vandal resistant. 3.smooth gestures,no pressure force for detection. 4.long product life,no moving parts in operation. 5.multi-touch points. 6.excellent optical property.
