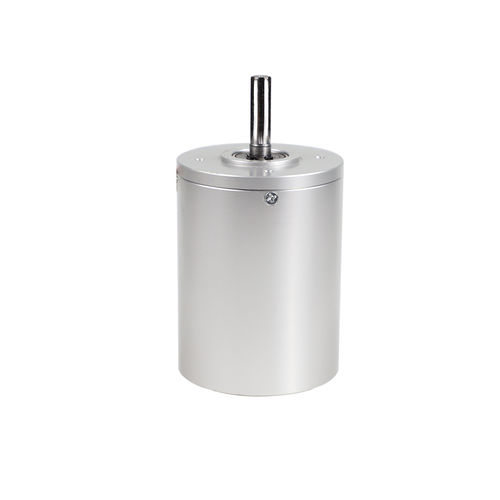

Direct-drive motor PBL7650036 DCBLDC24 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- BLDC
- Voltage
- 24 V, 36 V
- Protection class
- IP44
- Configuration
- permanent magnet
- Number of poles
- 10-pole
- Cooling mechanism
- air-cooled
- Applications
- for pump, for industrial applications, for robotics, for lifting applications, for automatic doors
- Other characteristics
- high-torque, low-noise, low-speed, energy-saving, direct-drive
- Power
589 W
(0.801 hp)- Intensity
Max.: 31.35 A
Min.: 0.07 A
- Torque
Max.: 6.139 Nm
(4.52789 ft.lb)Min.: 0.366 Nm
(0.26995 ft.lb)- Rotational speed
Max.: 1,771 rpm
(11,127.52 rad.min-1)Min.: 916 rpm
(5,755.4 rad.min-1)1,500 rpm
(9,424.78 rad.min-1)- Diameter
76 mm
(2.99 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Bigger Torque and Lower Speed for Heavy Operational Application.
