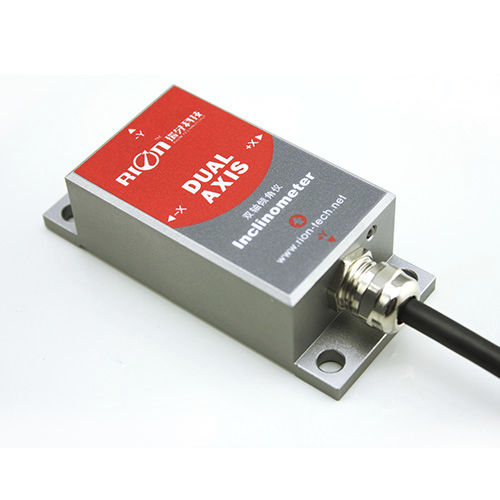

Dual-axis inclinometer SDA126T

CANhigh-precision

General Description SDA126T is a CAN 2.0B output dual-axis dynamic inclinometer newly developed by RION’s D & R for the industrial field control , the product can be used in the fast moving car construction machinery, Compared to static tilt switch can anti acceleration effect,using industry standard isolated CAN transceiver, built-in high-precision A / D differential converter, by 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. Because of Built in high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 100Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment. Features: ● Dynamic Dual axis inclination measure ●Measuring Range :±1～±90° optional ●Wide voltage input: 9～36V ●Wide temperature working: -40～+85℃ ●Resolution: 0.01° ●IP67 protection class ●Direct lead cable interface ●Small size :L90×W40×H26mm ●Output mode: CAN 2.0B
