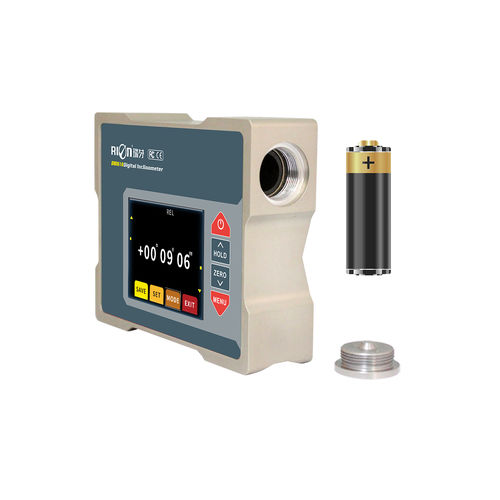

2-axis inclinometer DMI610

USBMEMScapacitive

DMI610 is a digital display inclinometer for various industry angle controling and measuring. The core of this product use micro mechanical control principle, using RION patent interleaved temperature compensation model algorithm, play micro electronic mechanical principle of absolute operation advantage, to ensure the long-term stability and repeatability of measuring instrument. DMI610 single axis maximum range of up to + 90 ° , resolution 0.002 ° , the best accuracy <0.02° (in full measuring range), fast response speed, stable data , specially designed side and bottom the strong magnetic adsorption type installation, three datum can be measured using normally, bring great convenience to customers, DMI610 has the function of data storage, 3 measurement modes (radian, angle, mm/m) optional, strong expansibility, convenient application, industrial reliability, and has the absolute competitive price advantage in the international market have absolute competitive advantage! Features: ●Best accuracy：<0.02° ●Repeatability：0.02° ● Data store function ●Absolute/Relative measurement can switch ●Both sides and bottom can measure ●Three surface datum strong magnetic installation ●Working Temperature : -10°～ +70℃ ●Auto-angle interleaved compensation function ●Auto temperature drift compensation ●User can calibrate ZERO by himself ●Night vision fours colors screen ●Three kinds of measurement mode selectable (radian, angle, mm/m)
