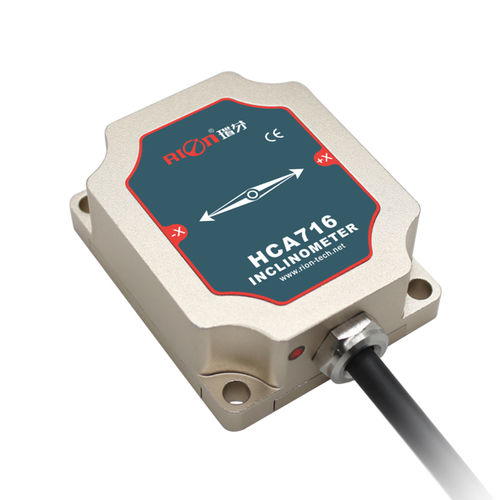

Dual-axis inclinometer HCA716-CAN2.0A/B

digitalMEMShigh-precision

CANBUS INCLINOMETER Single axis inclination measurement Accuracy:0.008° DC 9~36V wide voltage input Wide temperature operation -40~+85℃ High vibration resistance>100g Product Description HCA716S is a small volume high-precision single-axis inclinometer developed by RION Technology for industrial field control. It adopts CAN2.0A/B serial access interface. Built-in high-precision 24bit A/D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measuring range up to ±180°, and the full-scale accuracy is 0.01°, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.
