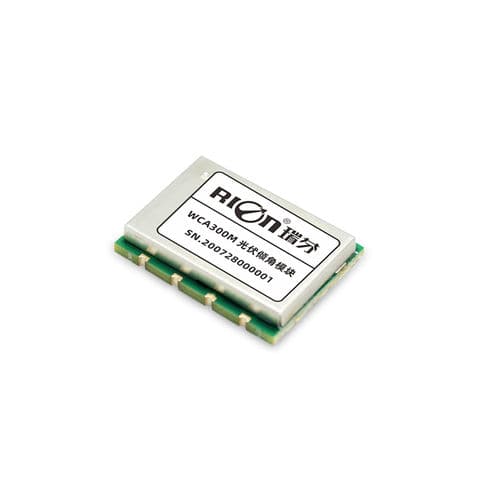

Single-axis tilt sensor WCA300M

TTLhigh-resolutionfor solar trackers

★APPLICATION RANGE 1.Solar photovoltaic tracking system 2.Wind deviation monitoring 3.Hospital bed 4.Vertical monitoring 5.Building tower crane 6.Electric vehicle control 7.Woodworking machinery ★FEATURES 1.Resolution0.1° 2.Largerange 3.OutputTTL 4.work voltage DC3.3~7V 5.Good performance at full temperature 6.High vibration resistance>100g PRODUCT DESCRIPTION WCA300M single-axis inclination module is a new low-costinclination module independently developed by RlONTechnology.lt adopts the latest anti-jamming platform designand integrates a new micro-mechanical sensing unit. lt haswide temperature working performance, superior anti-vibrationperformance, stable and reliable long-term work, and effectivework.The life span is up to 10 years. Each module goesthrough the factory's strict calibration procedure, whicheffectively eliminates the zero-bias error. Cross axial error.linearity error.Using tape packaging, it can be directly used forautomatic placement with SMT placement machine, which ismore efficient and lower-cost.
