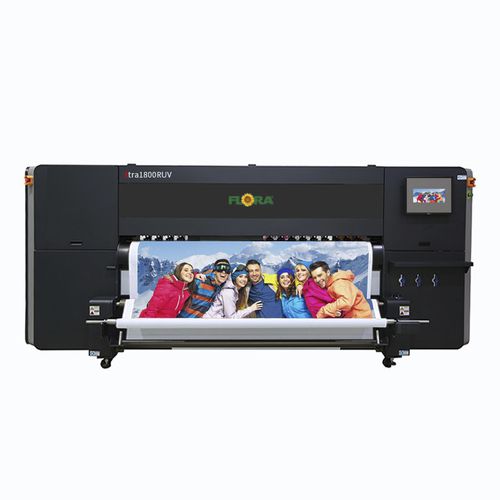

FLORA pinch roller UV printer
Grayscale inkjet technology, printhead variable drop size from 6 to 18pl
Excellent coverage with standard CMYK vivid and bright colors
Plenty of color scheme including white and varnish, light magenta and light cyan
Upgraded feed-in and take-up system elimiate media wave and winding problem
Excellent stepping motor and movement module supoort high presicion printing
Resolution : Up to1452*1440dpi
Inkjet technology:
On-demand piezoelectricity inkjet mode, supporting gray level printing
Ink type: LED UV inks environment friendly, excellent colors and high durability, FLORA LED UV ink
Color:
6 colors: C+M+Y+K+W+V, C+M+Y+K+LC+LM
4 colors: C+M+Y+K
Cartridgecapacity: 2.5L
RIP software : Photoprint Flora Edition 12, Caldera, Onyx for option
Color control: International standard ICC color control, curve and density adjustable
File format: Tiff, Jepg, Postscript, EPS, Pdf,etc.
Media system
Printing media:
PVC, Vinly film, car sticker, light box film and coiled materials, etc.
Easy to load and unload materials, suitable for various media
Media specification: The maximum width is 185cm. The roller diameter is up to 32cm and the weight is up to 100kg.
Data transmission
Data interface: High speed USB transmission
Machine size
Machine: 358*100*162cm
Packing box: 390*115*190cm
Machine weight: 850KG
Operating environment
Temperature: 20-30℃
Relative humidity: 35 - 65%, non-condensing.
Power requirements
Maximum power: 2500W
Access parameter: Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 12A
