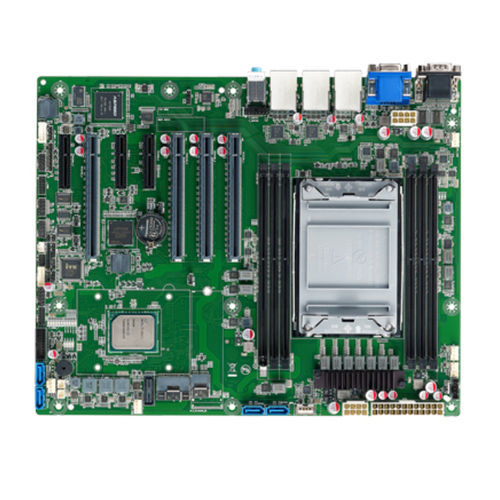

ATX motherboard SER SV-810

Intel® Xeon3rd generation Intel® Core™Intel®

BMC ASpeed AST2500 Baseboard Management Controller (BMC), Support IPMI 2.0 Memory - DDR4-2666/2933/3200, 6*ECC RDIMM/ LRDIMM, up to 6*64GB Storage - 4*SATA 3.0 1*M.2 (Key-M, PCIe x4 NVMe/ SATA SSD, 2280) 1*Slim-SAS 8i (PCIe x4 NVMe/ SATA SSD) 1*Slim-SAS 4i (PCIe x4 NVMe/ PCIe x2/ SATA SSD) Expansion Interface - 4*PCIe x16 Slot (PCIe x16 Gen4) 2*PCIe x4 Slot (PCIe x4 Gen3) 1*PCIe x4 Slot (PCIe x2/ x1 Gen3) BIOS - AMI UEFI BIOS System - Linux, Windows Server 2016, Windows10/11 TPM - SLB9670VQ2.0, TPM2.0 onboard, With 1*TPM Header I/O Interface Ethernet - 2*Intel® 1Gbps Ethernet Controller, RJ45 1*Realtek® 1Gbps Ethernet Controller, RJ45 Serial - 2*RS232, 2*RS232/RS422/RS485 USB - 6*USB 3.0, 5*USB 2.0 Audio - Realtek® 5.1 channel HDA Codec, with MIC/Line-out/Line-in Others 1*GPIO Header, 1*PS/2 Header (Keyboard & Mouse) 1*Case Open Header Display Display Interface - 1*VGA: max resolution up to 1920*1200@60Hz Mechanical & Environment Dimension - 305*244mm Power Input - ATX PSU Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
