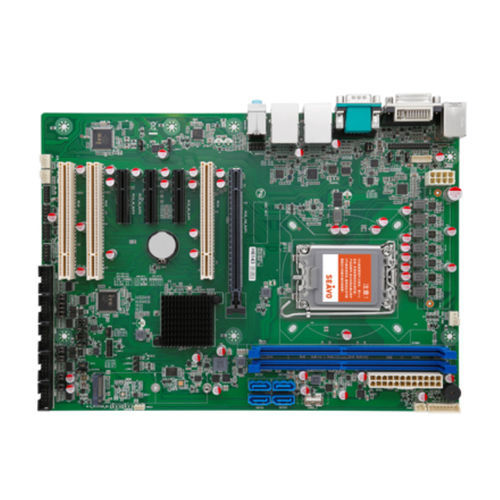

ATX motherboard SV4-H6143

Intel® Celeron®Intel® Pentium12th Generation Intel® Core™

Memory DDR4-3200, 2*U-DIMM, up to 64GB Storage 3*SATA 3.0 1*SATA 3.0/ 1*M.2 (Key-B, 2280, SATA) Expansion Interface 1*PCIe x16 Slot 3*PCIe x4 Slot 3*PCI BIOS - AMI UEFI BIOS System - Windows 10/11, Linux TPM - TPM2.0, Optional I/O Interface Ethernet 1*Intel® i225-V 2.5GbE Ethernet Controller, RJ45 1*Intel® i219-V GbE Ethernet PHY, RJ45 Serial - 4*RS232, 2*RS232/RS485 USB 4*USB 3.0, 7*USB 2.0 Audio - Realtek® Audio HDA Codec, with MIC/Line-out/Line-in PS/2 - 1*PS/2 Port (Keyboard & Mouse) GPIO - 8*Programmable GPIO Others - 1*Case Open Header Display Display Interface 1*DVI-D: max resolution up to 1920*1200@60Hz - 1*HDMI 1.4b: max resolution up to 4096*2160@30Hz - 1*VGA: max resolution up to 1920*1200@60Hz - 1*eDP: max resolution up to 4096*2304@60Hz Multiple Display - Triple Mechanical & Environment Dimension - 305*220mm Power Input - ATX PSU Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
