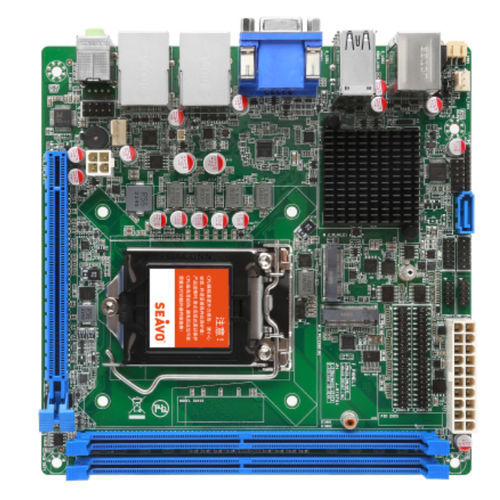

ATX motherboard SV1-H422A Intel® Celeron®Intel® Pentium10th generation Intel® Core™
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Celeron®, Intel® Pentium, 10th generation Intel® Core™
- Chipset
- Intel® H420E
- Memory
- DDR4 UDIMM
- Extension slot
- SATA3, M.2, 4 PCIe x16
- Socket
- Intel LGA1200
- Applications
- industrial
- Operating system
- Linux, Windows 10, Windows 11
- Memory frequency
- DDR4 2400 MHz, DDR4 2666 MHz, DDR4 2933 MHz, DDR4 2133 MHz
- Connectivity
- WiFi, Bluetooth, USB 2.0, HDMI, VGA, RS-232, GbE, RJ45, Ethernet, 6 USB 3.0
Description
Memory
- DDR4-2133/2400/2666/2933, 2*U-DIMM, up to 32 GB
Storage
- 1*SATA 3.0
Expansion Interface
1*PCIe x16
1*M.2 (key-E, 2230, PCIe+USB 2.0, Wifi+BT)
1*M.2 (key-M, 2242/3052, PCIe x2+SATA+USB 2.0)
BIOS
- AMI UEFI BIOS
System
- Windows 10/11, Linux
Technology
- TPM 2.0, KPMU 2.0
I/O Interface
Ethernet
- 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45
Serial
- 10*RS232
USB
- 6*USB 3.0, 6*USB 2.0
Audio
- Realtek® 5.1 channel HDA Codec, with MIC/Line-out/Line-in
PS/2
- 1*PS/2 Port (Keyboard & Mouse)
GPIO
- 8*Programmable GPIO
Display
Display Interface
1*VGA: max resolution up to 1920*1080@60Hz
1*HDMI: max resolution up to 4096*2160@30Hz
Multiple Display
- Dual
Mechanical & Environment
Dimension
- 170*170mm
Power Input
- ATX PSU
Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
- Operation: 10%~90%, Storage: 5%~95%, non-condensing
