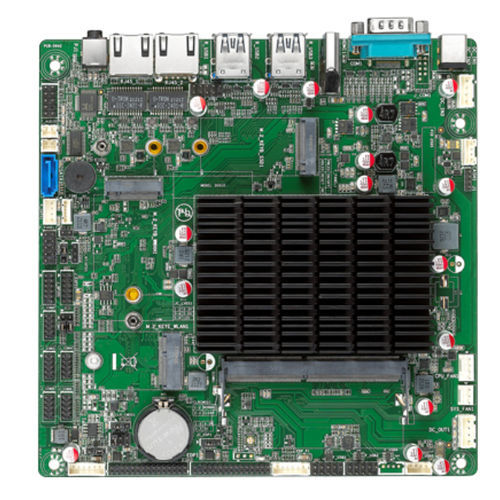

Mini-ITX motherboard SV1a-64116
Intel® Celeron® J6412Intel® Elkhart lake SoCquad-core

Mini-ITX motherboard - SV1a-64116 - Shenzhen Seavo Technology Co., Ltd. - Intel® Celeron® J6412 / Intel® Elkhart lake SoC / quad-core
Mini-ITX motherboard - SV1a-64116 - Shenzhen Seavo Technology Co., Ltd. - Intel® Celeron® J6412 / Intel® Elkhart lake SoC / quad-core
Mini-ITX motherboard - SV1a-64116 - Shenzhen Seavo Technology Co., Ltd. - Intel® Celeron® J6412 / Intel® Elkhart lake SoC / quad-core - image - 2
Add to favorites
Compare this product


Characteristics

Format
mini-ITX
Processor
Intel® Celeron® J6412, Intel® Elkhart lake SoC, quad-core
Chipset
Intel®
Memory
DDR4 SO-DIMM
Extension slot
SATA3, M.2
Applications
industrial
Operating system
Linux, Windows 10
Memory frequency
DDR4 3200 MHz, DDR4 2666 MHz, DDR4 2933 MHz
Connectivity
LVDS, WiFi, Bluetooth, USB 2.0, HDMI, RS-232, GbE, RS-485, 4 USB 3.0, eDP, Ethernet

Description

Memory - DDR4-2666/2933/3200, 1*SO-DIMM, up to 32GB Storage - 1*SATA 3.0 1*M.2 (Key-M, 2242/2260/2280, SATA SSD) Expansion Interface - 1*M.2 (Key-E, 2230, Wifi+BT) 1*M.2 (Key-B, 3042/3052, 4G/5G) BIOS - AMI UEFI BIOS System - Windows 10, Linux I/O Interface Ethernet - 1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 Serial - 4*RS232, 1*RS232/RS485, 1*RS232/TTL USB - 4*USB 3.0, 7*USB 2.0 Audio - Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier Parallel - 1*LPT Header GPIO - 8*Programmable GPIO Others - 1*Cash Drawer Control Header Display Display Interface - 1*HDMI: max resolution up to 4096*2160@30Hz 1*eDP/LVDS: LVDS, max resolution up to 1920*1200@60Hz eDP, max resolution up to 4096*2160@60Hz 1*eDP: max resolution up to 4096*2160@60Hz Multiple Display - Triple Mechanical & Environment Dimension - 170*170mm Power Input - DC 12V Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
