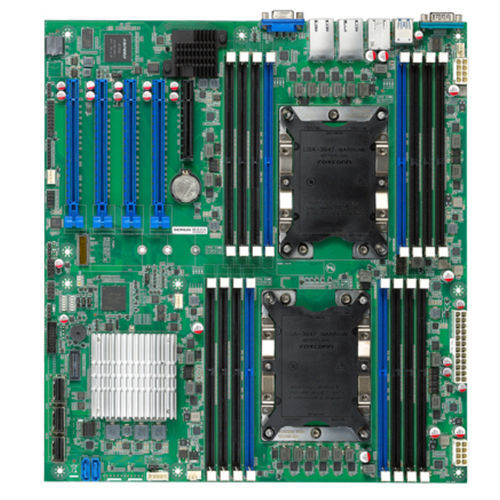

ATX motherboard SER SV-620 Intel® XeonIntel®SATA3
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Xeon
- Chipset
- Intel®
- Extension slot
- SATA3, M.2, 4 PCIe x16, IPMI 2.0
- Applications
- industrial
- Operating system
- Linux, Windows 10
- Memory frequency
- DDR4 2400 MHz, DDR4 2666 MHz, DDR4 2133 MHz
- Connectivity
- USB 2.0, VGA, RS-232, GbE, RJ45, 4 USB 3.0, Ethernet
Description
each processor supports Intel® Ultra Path Interconnect (UPI) of up to 10.4 GT/s
Chipset
- Intel® C620 Series (C622/C624/C628)
Memory
- DDR4-2666/2400/2133, 16*DIMM, up to 2TB, support ECC
Storage
- 1*M.2 (Key-M, PCIe x4 NVMe SSD, 2242/2260/2280)
12*SATA 3.0 (SAS1~3), 2*SATA 3.0 (SATA 7P)
Expansion Interface
- 4*PCIe 3.0 x16, 1*PCIe 3.0 x8
BIOS
- AMI UEFI BIOS
System
- Linux, Windows Server 2016, Windows10
I/O Interface
Ethernet
DualLAN with Intel® X550 10GBase-T Ethernet Controller, 2*RJ45
1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45
Serial - 1*RS232
USB
- 4*USB 3.0, 2*USB 2.0
Audio
- Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out
Display
Display Interface
- 1*VGA: max resolution up to 1920*1200@60Hz
Multiple Display
- Single
Mechanical & Environment
Dimension
- 330*305mm
Power Input
- ATX PSU
Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
- Operation: 10%~90%, Storage: 5%~95%, non-condensing
