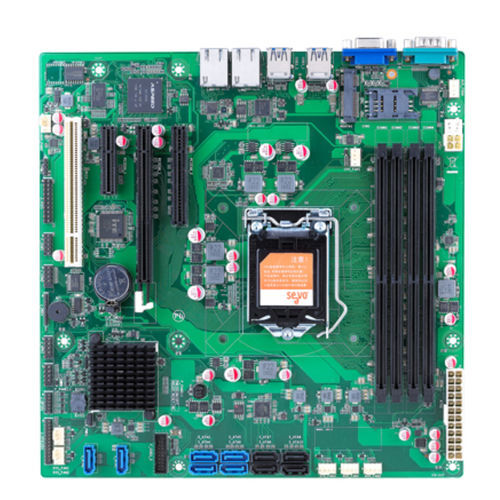

ATX motherboard SER SV-600Intel® XeonIntel® Core i3Intel® Core i5
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Xeon, Intel® Core i3, Intel® Core i5, Intel® Core i7, 6th generation Intel® Core™, 7th Generation Intel® Core™ i7
- Chipset
- Intel®
- Extension slot
- IPMI 2.0, 2 PCIe x8, Mini PCIe
- Socket
- Intel LGA 1151
- Applications
- industrial
- Operating system
- Linux, Windows 10, Windows 7, Windows 8.1
- Memory frequency
- DDR4 2133 MHz, DDR3 1866 MHz
- Connectivity
- USB 2.0, VGA, RS-232, GbE, Ethernet, 6 USB 3.0
Description
Chipset
- Intel® C232 Chipset, TDP 6W
Memory
- DDR4-1866/2133, 4*U-DIMM, up to 32 GB, Support ECC
Storage
- 6*SATA 3.0, 4*SATA 2.0
Expansion Interface
2*PCIe x8, 1*PCIe x4,
1*PCI,
1*Mini-PCIe
BIOS
- AMI UEFI BIOS
System
- Windows 7/8.1/10, Server 2008/2012, Linux
I/O Interface
Ethernet
- 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45
Serial
- 2*RS232
USB
- 6*USB 3.0, 2*USB 2.0
GPIO
- 8*Programmable GPIO
Display
Display Interface
- 1*VGA: max resolution up to 1920*1080@60Hz
Multiple Display
- Single
Mechanical & Environment
Dimension
- 244*244mm
Power Input
- ATX PSU
Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
- Operation: 10%~90%, Storage: 5%~95%, non-condensing
