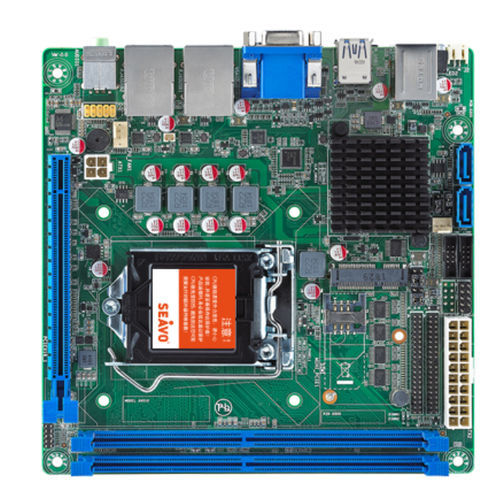

ATX motherboard SV1-H112AIntel® Celeron®Intel® PentiumIntel® Core i3
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Celeron®, Intel® Pentium, Intel® Core i3, Intel® Core i7, 6th generation Intel® Core™, 7th Generation Intel® Core™ i7
- Chipset
- Intel® H110
- Extension slot
- Mini PCIe
- Socket
- Intel LGA 1151
- Applications
- industrial
- Operating system
- Windows 10, Windows 7, Windows 8.1
- Memory frequency
- DDR4 2133 MHz
- Connectivity
- WiFi, USB 2.0, HDMI, VGA, RS-232, GbE, RJ45, 4 USB 3.0, Ethernet, PS2
Description
Chipset
- Intel® H110 Chipset, TDP 6W
Memory
- DDR4-2133, 2*U-DIMM, up to 32 GB
Storage
- 2*SATA 3.0, 1*mSATA
Expansion Interface
1*PCIe x16,
2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported)
BIOS
- AMI UEFI BIOS
System
- Windows7/8.1/10, Linux
I/O Interface
Ethernet
- 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45
Serial
- 10*RS232
USB
- 4*USB 3.0, 6*USB 2.0
Audio
- Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out
PS/2
- 1*PS/2 Port (Keyboard & Mouse)
GPIO
- 8*Programmable GPIO
Display
Display Interface
1*VGA: max resolution up to 1920*1200@60Hz
1*HDMI: max resolution up to 4096*2160@24Hz
Multiple Display
Dual
Mechanical & Environment
Dimension
- 170*170mm
Power Input
- ATX PSU
Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
- Operation: 10%~90%, Storage: 5%~95%, non-condensing
