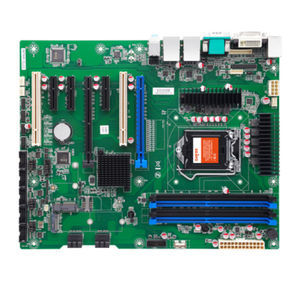

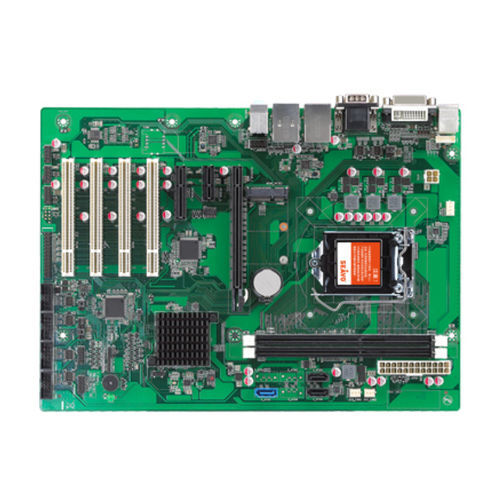

ATX motherboard SV4-H8134Intel® Celeron®Intel® PentiumIntel® Core i3
Add to favorites
Compare this product
Characteristics
- Format
- ATX
- Processor
- Intel® Celeron®, Intel® Pentium, Intel® Core i3, Intel® Core i5, Intel® Core i7, 4th generation Intel® Core™
- Chipset
- Intel® H81
- Extension slot
- Mini PCIe
- Socket
- Intel 1150
- Applications
- industrial
- Operating system
- Linux, Windows 10, Windows 7, Windows 8.1
- Memory frequency
- DDR3 1600 MHz, DDR3 1333 MHz
- Connectivity
- USB 3.0, VGA, RS-232, GbE, RS-485, Ethernet, PS2, 8 USB 2.0, DVI-D
Description
Chipset
- Intel® H81 Chipset, TDP 4.1W
Memory
- DDR3-1333/1600, 2*U-DIMM, up to 16 GB
Storage
- 1*SATA 3.0, 2*SATA 2.0, 1*mSATA
Expansion Interface
1*PCIe x16, 1*PCIe x4, 1*PCIe x1, 4*PCI,
1*Mini-PCIe(mSATA supported)
BIOS
- AMI UEFI BIOS
System
- Windows 7/8.1/10, Linux
I/O Interface
Ethernet
- 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45
Serial
- 5*RS232, 1*RS232/RS485
USB
- 2*USB 3.0, 8*USB 2.0
Audio
- Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out
PS/2
- 2*PS/2 Port (Keyboard & Mouse)
Parallel
- 1*LPT Header
GPIO
- 8*Programmable GPIO
Display
Display Interface
1*VGA: max resolution up to 1920*1200@60Hz
1*DVI: max resolution up to 1920*1200@60Hz
Multiple Display
- Dual
Mechanical & Environment
Dimension
- 305*220mm
Power Input
- ATX PSU
Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
- Operation: 10%~90%, Storage: 5%~95%, non-condensing

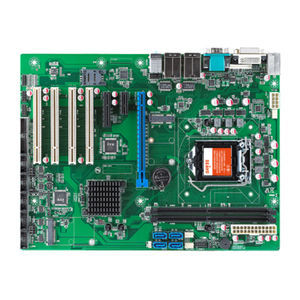

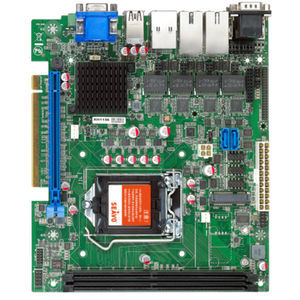

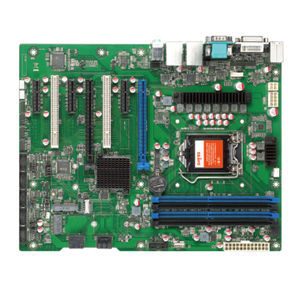

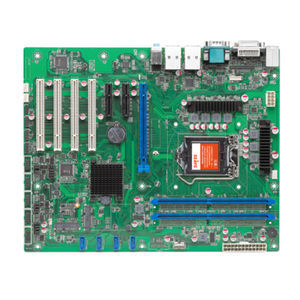

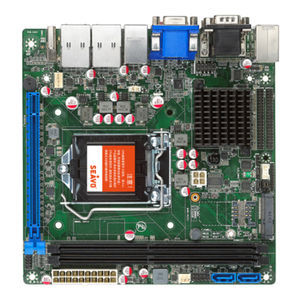

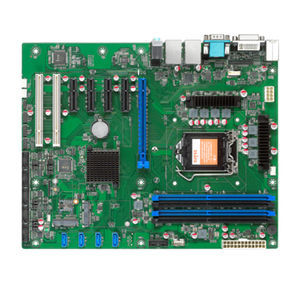

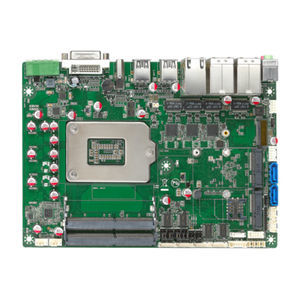

Other Shenzhen Seavo Technology Co., Ltd. products
