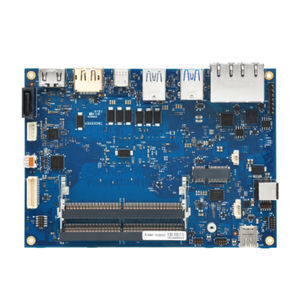

3.5" motherboard SV3b-13526Intel® Celeron®11th Generation Intel® Core™Intel®
Add to favorites
Compare this product
Characteristics
- Format
- 3.5"
- Processor
- Intel® Celeron®, 11th Generation Intel® Core™
- Chipset
- Intel®
- Memory
- DDR4 SO-DIMM
- Extension slot
- SATA3, M.2
- Applications
- industrial
- Operating system
- Linux, Windows 10
- Memory frequency
- DDR4 3200 MHz
- Connectivity
- LVDS, USB, USB 2.0, USB 3.0, HDMI, RS-232, RS-485, eDP, Ethernet, 6 USB 3.0
Description
15W default, 12W/28W BIOS optional
or Celeron® 6305E CPU, 15W
Memory
- DDR4-3200, 2*SO-DIMM, up to 64 GB
Storage
1*SATA 3.0
1*M.2 (Key-M, 2280, PCIe x4 NVMe/ SATA, SSD)
Expansion Interface
1*M.2 (Key-E, 2230, PCIe+USB, Wifi+BT)
1*M.2 (Key-B, 3052, PCIe/ USB 3.0+USB2.0, 4G/5G)
BIOS
- AMI UEFI BIOS
System
- Windows 10, Linux
I/O Interface
Ethernet
- 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45
Serial
- 3*RS232, 2*RS232/ TTL, 1*RS232/ RS485/ TTL
USB
- 6*USB 3.0, 4*USB 2.0
Audio
- Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
GPIO
- 8*Programmable GPIO
Display
Display Interface
2*HDMI: max resolution up to 4096*2160@30Hz
1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60Hz
eDP, max resolution up to 3840x2160@60Hz
Multiple Display
- Triple
Mechanical & Environment
Dimension
- 146*105mm
Power Input
- DC 12V
Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
- Operation: 10%~90%, Storage: 5%~95%, non-condensing
