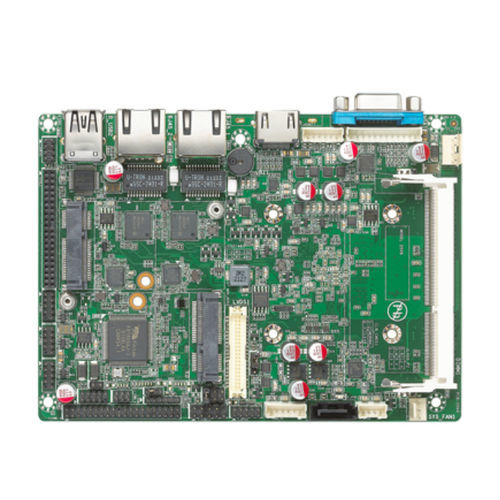

3.5" motherboard SV3b-19026-BH

Intel® Celeron J1900Intel® Celeron Bay TrailIntel®

Memory - DDR3L-1333, 1*SO-DIMM, up to 8 GB Storage - 1*SATA 2.0, 1*mSATA Expansion Interface - 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported), up to 3*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G, 1*Wifi supported) with SV-M7-C BIOS - AMI UEFI BIOS System - Windows 7/8.1/10, Linux I/O Interface Ethernet 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 up to 4*Intel® 1Gbps PCIe Ethernet Controller with SV-M7-L Serial - 4*RS232, 1*RS232/TTL, 1*RS232/RS485 USB 1*USB 3.0, 6*USB 2.0 Audio - Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out PS/2 - 1*PS/2 Header (Keyboard & Mouse) GPIO - 8*Programmable GPIO Feature Interface - 1*SVIO Connector Display Display Interface - 1*VGA: max resolution up to 1920*1080@60Hz 1*HDMI: max resolution up to 1920*1200@60Hz 1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60Hz eDP, max resolution up to 2560*1600@60Hz Multiple Display - Dual Mechanical & Environment Dimension - 146*105mm Power Input - DC 12V Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
