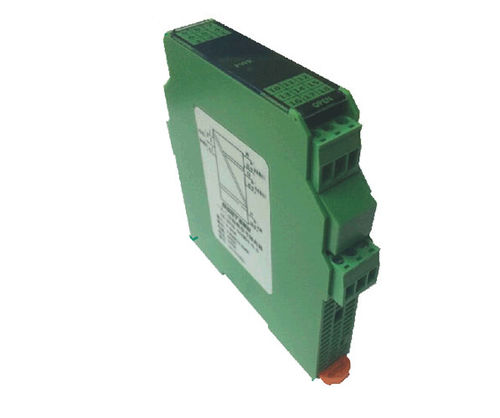

Signal isolator CE-S#28-##4MD4-0.2 series

currentDC voltageanalog input

The main function of the signal isolator is to isolated transmit the input DC voltage (current) signal into the standard current or voltage signal. The product contains two efficient micro power isolated power supplies that provides an isolated power supply to the pre-stage primary sensor while powering the internal signal processing circuitry. The products are widely used in analog signal isolation conversion of industrial field, such as communications, power rail, industrial control and other automation and control fields. Features Fully isolated circuit structure: Two signal inputs are isolated from each other; two signal outputs are isolated from each other, signal input, output and auxiliary power supply are isolated from each other; Using electromagnetic isolation technology, stable and reliable performance; The output port and power port can withstand 2KV surge impact; The accuracy is better than 0.2; Provides the isolated 24V distribution power output, facilitates a sensor power supply; Using 18mm thin shell guide rail installation, space utilization is high; Wiring using plug terminals, easy wiring and maintenance.
