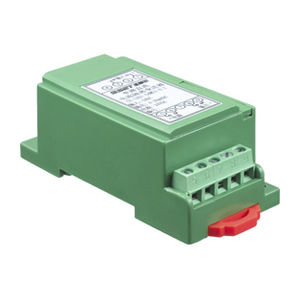

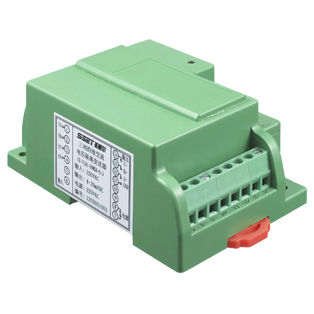

DC voltage transducer VZ01-54MSK

DIN rail

This product is a DC high voltage isolation transducer. It can be used to measure high DC voltage up to 5000Vdc, with full isolation between input, output and power supply, high isolation voltage, safe and reliable. This product is with the advantage of high precision, fast response, simple installation etc. It can be widely used in high DC voltage signal real-time detection or monitoring, data acquisition, industrial control, PLC monitoring and control and other automatic control system. Features High detection voltage: special pressure-resistant component is used for the input terminal,can sample up to 5000V DC voltage. Wide power supply: product input auxiliary power supply is wide power supply,makes the product can work normally within the power supply voltage range of 12V ~ 36VDC. High isolation voltage: input,power supply,output are fully isolation. isolation voltage between the input signal and the output signal is 10KVDC; isolation voltage between the input signal and the power supply is 10KVDC; isolation voltage between the output signal and the power supply is 6KVDC; High precision,low temperature drfit: linear and long-term stability are guarant
