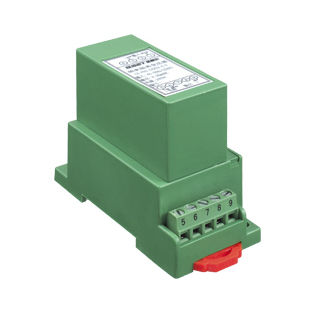

DC voltage transducer CE- VZ01A-**MS2-0.2 series

DIN rail

This device is treble isolated DC voltage isolation transducer, adopts the principle of optoelectronic isolation to detect the DC voltage signals. Output linear 0～5V, 0～20mA or 4～20mA standard signals after isolation, this product implements a complete isolation between input and output, input and auxiliary power, auxiliary power and output. And with advantages of high precision, rapid response, high voltage isolation, low temperature drift, easy for installation, comply with international standards. Can be widely used in field data collection in computer scene, industrial control, PLC measurement and control, and a variety of automatic control system. Test conditions: room temperature: 25℃; input range: 0～500V; auxiliary power supply: +12V, +15V, +24V, AC220V; Input range: 0~10mV~500V; Accuracy: class 0.2;（adopts fiducial error）; Load capacity: ≥2KΩ( voltage output), ≤250Ω(current output); Temperature drift:≤200ppm/℃; Isolation voltage: 2500V DC; Response time:≤50mS; Rated power consumption: <1.0W(+12V), <1.2W(+24V); Output ripple: ≤10mV; Frequency range: none; Surge impact immunity: Power port three–level 2000V (L-N/2Ω/ integrated wave) Analog I/O port three-level 2000V (L-N/40Ω/integrated wave); Impulse immunity:: none; Input overload capacity: 2 times rated input value, 10 times per second; Operating condition: -10～60℃; Storage condition: -40~70℃.
