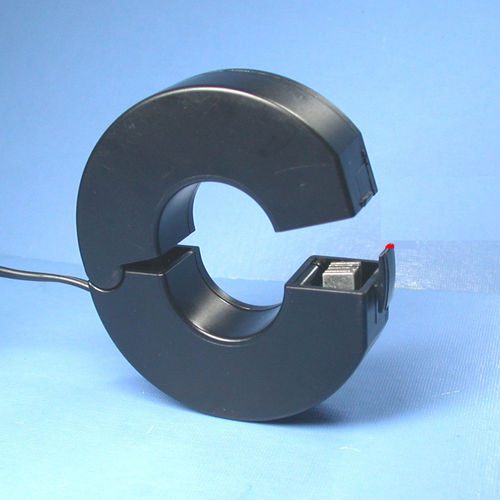

Transformer current transducer CE- IJCT-24-5 seriesclampsingle-phaseAC
Add to favorites
Compare this product
Characteristics
- Technology
- transformer
- Mounting
- clamp
- Electrical characteristics
- AC, single-phase
- Other characteristics
- split-core
- Primary current
Min.: 100 A
Max.: 300 A
Description
Operating Temperature： -40~80℃
Primary Current (Amp.)50/60Hz: 100A-300A
Accuracy @RL≦10Ω: Class 2%
Turns Ratio: 1:1000; 1:1500; 1:2000; 1:2500; 1:3000; 1:5000; 1:6000 optional
Phase error at rated current range： ±1°
Dielectric Withstanding Voltage (Hi-pot): 4000V/1mA/1min
Impulse Withstand Voltage： 5KV Peak
Insulation Resistance： DC500V/100MΩ min
Opening Dimension： 28mm Min.
