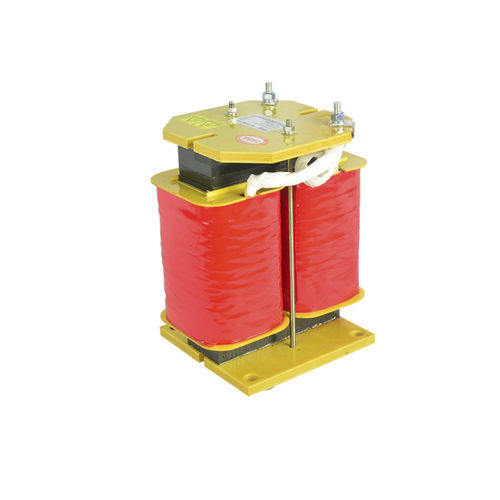

Filter coil SKS-DCH-200/0.12

DChigh-frequencyline

APF series are designed for high-frequency inverter circuit and suitable for power supplier system of AC 10-30KHz frequency and below 1KV rated voltage, it is a string of high-frequency circuits in harmonic components which can protect other electrical components safe and reliable operation; also can reduce current ripple, guarantee continuous current, and improve quality of power supply when the inductor reaches a certain amount. Characteristic: Capacity: 0.75KVA-1000KVA Phase type: single phase / three phase System voltage:normally 0.4KV,less than 1KV Current rated: 10-2000A Vital meterial: High-frequency magnetic core(Low residual magnetism, low loss) External equipment:High-strength insulation material as a fixed member Impedance: 1%/4.5%/5%/6%/12%/13% AC power supplier frequency: 10～30KHz Protection class: IP00 Operation ambient temperature: -20~50℃,best in 40℃ Insulation class: F/H class Industrial standard: GB10229-1988 Certification :CE Application: High-frequency power supply or high-frequency circuits
