Line Reactor:

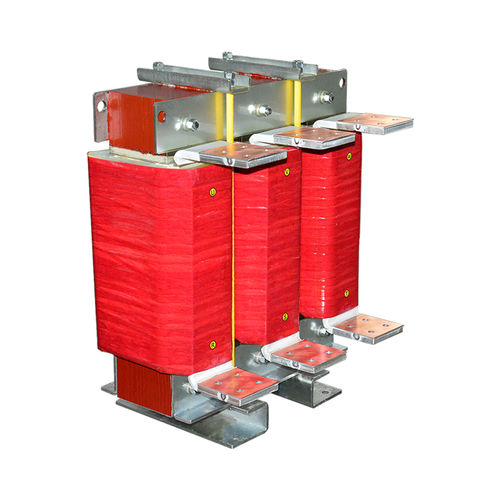

SKS-ACL series Line Reactor are placed in series with electrical equipment to introduce a specific controlled impedance to the AC circuit. This series are applied at AC drive input side to suppress inrush voltage, reducing inrush and peak current, improving real power factor, restraining grid harmonics and improving the output current waveform. AC Line Reactor also known as input Reactor, AC Choke.
Material Features of Line Reactor:
Flexible Meterial Choice:Selection of silicon steel,ferrite magnetic material of amorphous core according to the frequency of application;
Excellent Property:Due to foll winding structure,small DC resistance, strong resistance to electromagnetic force, good overload ability in short time
Reliable Performance:F-class insulation materials are used, which ensure products maintain reliable performance in harsh working condition.
Low Noise: Designed with low magnetic flux density,the reactors of high linearit.With powerful overload sheets, the reactor noise is low
Characteristic of this series :
Rated operating power: 380V/690V/1140V
Operating frequency: 50/60Hz
Current range: 5-2000A
Operating ambient temperature: -25℃-50℃
Dielectric Strength: Core-winding,AC 3000V/50Hz/5mA/ free of demage in 60s (test in factory)
Insulation Resistance: Core-Winding,DC 1000V,Resistance >100M ohm
Noise: Less than 65dB(to be measured at the point 10 meter away from the reactor horizontally
Protection class: IP00
Insulation class: F/H
Standard: GB 19212.1-2008GB/T1094.6-2011
Application of Line Reactor:
For inverter and motor
