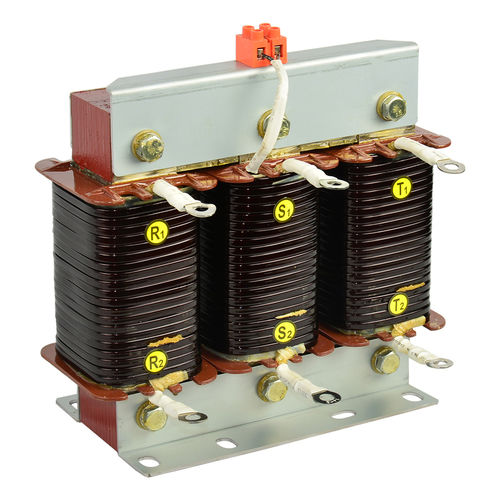

Reactive power compensation choke SKS-CKSGL-1.75/0.48-7

wire-woundferriteAC

Detuned Choke: CKSGL series detuned chokes are placed in reactive power compensation application and used to prevent parallel resonance and amplification harmonic current occurring. Material Features of Detuned Choke: High heat resistance level, high insulation strength, safe and reliable Core with cold-rolled silicon steel sheets, low loss and good performance in high frequency. High linearit and high overload capacity. VPI process makes immersion oil fully, thicker oil film, low noise and corrosion resistance. Characteristic of this series Capacity: 0.35kvar-7.49kvar Voltage grade: 380V/480V/690V/1140V Voltage drop: 6%,7%,12%,14% Operating frequency: 50/60Hz Protection class: IP00 Insulation class: F Terminals: copper clad aluminum or aluminum Application of Detuned Choke: Restrain high harmonic, limit operating impulse. Improve system power factor, prevent harmonic capacitor causing harm results. Avoid excessive amplification and resonanceof harmonic wave to the power grid when capacitior equipments access in.
