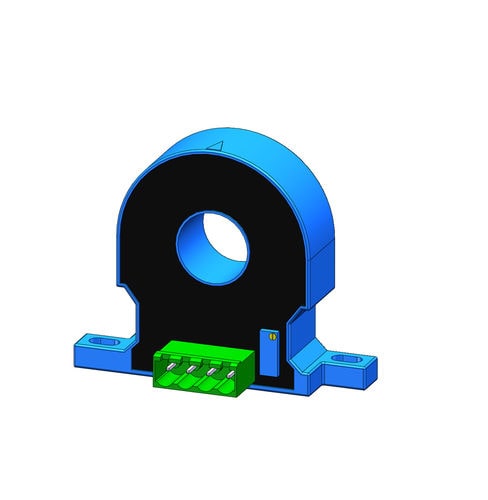

Closed-loop current sensor SCD1 series

fixedDCleakage

SCD1 series DC Leakage Current Sensor is the current sensor which develop on base of magnetic modulation closed loop principle, apply unique patented technology for measure tiny current (mA level from 10ma to 100ma). Series：SCD1 Primary Nominal Current RMS Ipn (A)：DC 10ma~100mA (Please choose model according to the Ipn amps). Output voltage @Ipn Rl=10KΩ Ta=25℃：±5V Supply Voltage： DC±12V or ±15V Five window diameter for choice. SCD1- Round perforation ø 20 SCD2- - Round perforation ø 40 SCD3- - Round perforation ø 60 SCD6- - Round perforation ø 18 SCD9- - Round perforation ø 80 Current Sensor is more precise product for power electronics and industrial control equipments. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * （please describe your requirements considering such as: 1. - Type of Applications or Market 2. - Type of Sensor needed (either product name or functional description) 3. - Quantity of samples needed 4. - Quantity of sensor needed in a 1-3 years production cycle )
