Hall effect current transducer SCY10 series
DCACsplit-core

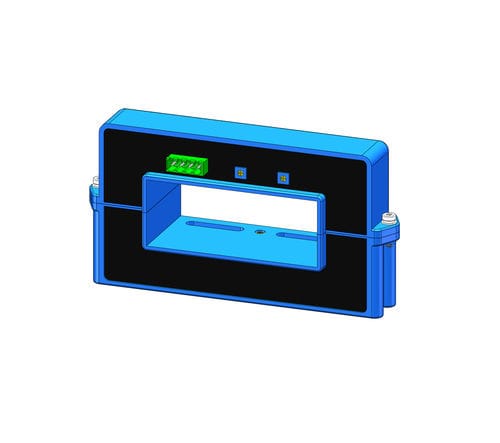

Hall effect current transducer - SCY10 series - Shenzhen Socan Technologies Co.,Ltd - DC / AC / split-core
Hall effect current transducer - SCY10 series - Shenzhen Socan Technologies Co.,Ltd - DC / AC / split-core
Hall effect current transducer - SCY10 series - Shenzhen Socan Technologies Co.,Ltd - DC / AC / split-core - image - 2
Hall effect current transducer - SCY10 series - Shenzhen Socan Technologies Co.,Ltd - DC / AC / split-core - image - 3
Add to favorites
Compare this product


Characteristics

Technology
Hall effect
Electrical characteristics
DC, AC
Other characteristics
split-core

Description

Split Core Current Sensor develops on hall-effect principle, can accurate measure ac, dc and pulse current without insert lose. Thanks to the split core design, the up and down could be open 180 degree, with wide primary input current from 400 Amps to 3000 Amps, it is very useful for high current and also low current measurement. Specifications ●Input current:0 to 3000A DC or AC ●Output Signal: ±5V DC; ±4V DC; 0-10V DC; 4-20mA DC ●Measurement Accuracy: ±1% ●Linearity: ±1% ●Temperature drift: <5% ●Dual power supply : DC ±12V ~±15V ●Fast response time ●Operating Temperature: -20°C to +80°C ●Storage Temperature: -40°C to +85°C Certification: RoHS Complaint, ISO9001:2018 To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
