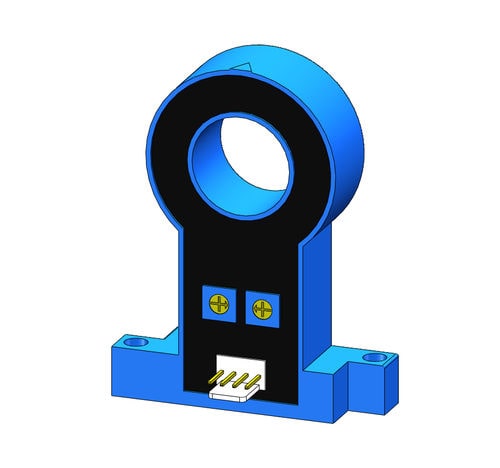

SCK1 Series is an open-loop current sensor develops from hall-effect, galvanic isolation between primary and secondary circuit provides accurate electronic measurement of DC, AC or pulsed currents. Analog voltage signal output.
Round perforation, window size ø20mm, mainly measure wire conductor current.
Output: voltage ±4V or ±5V.
Advantageous:
1.It can measure DC, AC, pulse, and various irregular waveform currents of cable conductors under isolation conditions.
2. High measurement accuracy, wide range, fast response speed, low zero drift, low temperature drift, small overshoot, and good linearity.
3.The dynamic performance (DI/DT and response time) is the best when the busbar is completely filled with the primary perforation.
4.Strong ability to resist external electromagnetic interference (ESD, EFT, CS, CE, BCI, dv/dt, etc.).
Application:
It can be applied to AC frequency conversion speed regulation and servo motor traction.
1.Battery power, uninterruptible power supply.
2.Switching power supply, welding machine power supply.
3.Electric vehicles.
4.New energy sources such as photovoltaics.
