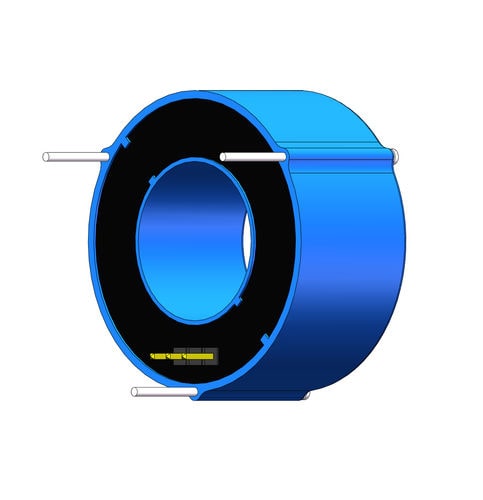

Hall effect integrated circuit current sensor SCK33 series
PCBDCAC

Hall effect integrated circuit current sensor - SCK33 series - Shenzhen Socan Technologies Co.,Ltd - PCB / DC / AC
Hall effect integrated circuit current sensor - SCK33 series - Shenzhen Socan Technologies Co.,Ltd - PCB / DC / AC
Hall effect integrated circuit current sensor - SCK33 series - Shenzhen Socan Technologies Co.,Ltd - PCB / DC / AC - image - 2
Hall effect integrated circuit current sensor - SCK33 series - Shenzhen Socan Technologies Co.,Ltd - PCB / DC / AC - image - 3
Hall effect integrated circuit current sensor - SCK33 series - Shenzhen Socan Technologies Co.,Ltd - PCB / DC / AC - image - 4
Add to favorites
Compare this product


Characteristics

Technology
Hall effect
Mounting
PCB
Electrical characteristics
DC, AC
Primary current

Min.: 100 A

Max.: 500 A

Description

Series: SCK33 Measurement: DC, AC, Pulse Current Nominal Value: 100A..500A Measuring Range: 150A..750A Second. Nominal Signal: Voltage Second. Nominal Signal Value: Instantaneous 2.5 +/- 2 V Supply Voltage: External DC Unipolar +5V Accuracy: 1 % Response Time: <5μs Offset Voltage And Temperature Characteristics: within±0.1%℃ Op. Temperature: -40 °C / 125 °C Technology: Open loop Hall effect Mounting: PCB Mounting on board Applications: Automotive Battery Management, Drives, Inverters, etc To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
