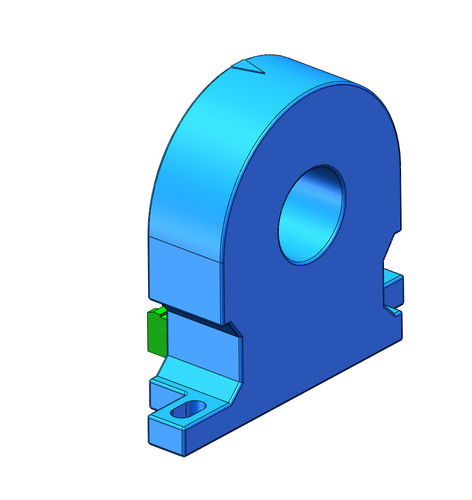

Leakage current sensor SCD1-100mA

closed-loopDC

SCD1-100mA is one typical model of SCD1 Series DC Leakage Current Sensor. This current sensor develop on base of magnetic modulation closed loop principle, apply unique patented technology for measure tiny current (mA level from 0ma to 20ma). Main features: Model: SCD1-100mA Primary Nominal Current RMS Ipn (A)：DC 0~100ma (Please choose model according to the Ipn amps). Output voltage @Ipn Rl=10KΩ Ta=25℃：±5V Supply Voltage： DC±12V Accuracy: 1% SoCan provide five primary window diameter size dc leakage current sensor. SCD1-- Round perforation ø 20mm SCD2- - Round perforation ø 40mm SCD3- - Round perforation ø 60mm SCD6- - Round perforation ø 18mm SCD9- - Round perforation ø 80mm Current Sensor is more precise product for power electronics and industrial control equipments. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * （please describe your requirements considering such as: 1. - Type of Applications or Market 2. - Type of Sensor needed (either product name or functional description) 3. - Quantity of samples needed 4. - Quantity of sensor needed in a 1-3 years production cycle )
