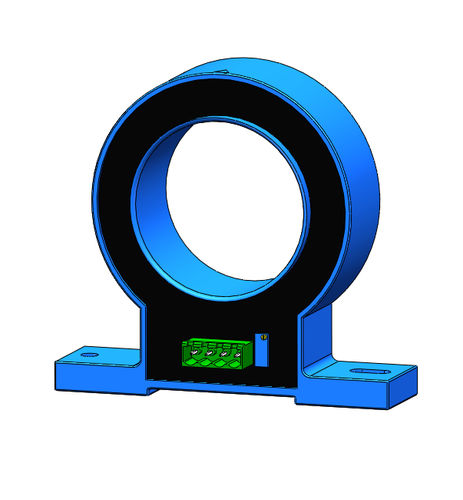

Fluxgate current transducer SCD3-10mA

fixedpanel-mountDC

SCD3-10mA is one typical model of SCD3 Series DC Leakage Current Sensor. This current sensor develop on base of magnetic modulation closed loop principle, apply unique patented technology for measure tiny current (mA level from 0ma to 10mA). Main features: Model: SCD3-10mA Primary Nominal Current RMS Ipn (A)：DC 0~10ma (Please choose model according to the Ipn amps). Output voltage @Ipn Rl=10KΩ Ta=25℃：±5V Supply Voltage： DC±12V Accuracy: 1% Primary through hole diameter ø60mm. SoCan provide five primary window diameter size dc leakage current sensor. SCD1-- Round perforation ø 20mm SCD2- - Round perforation ø 40mm SCD3- - Round perforation ø 60mm SCD6- - Round perforation ø 18mm SCD9- - Round perforation ø 80mm Current Sensor is more precise product for power electronics and industrial control equipments. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * （please describe your requirements considering such as: 1. - Type of Applications or Market 2. - Type of Sensor needed (either product name or functional description) 3. - Quantity of samples needed 4. - Quantity of sensor needed in a 1-3 years production cycle )
