Open-loop current sensor SCK3M-200A
fixedpanel-mountDC

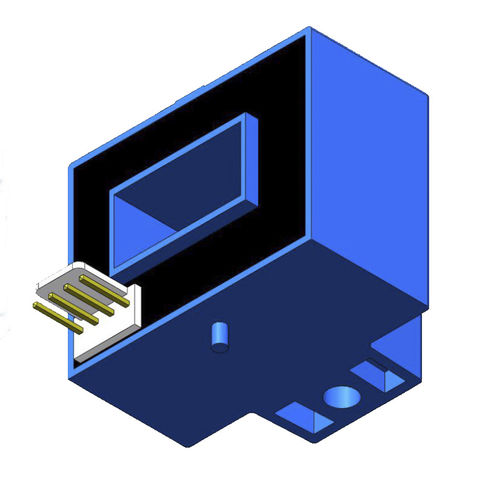

Open-loop current sensor - SCK3M-200A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC
Open-loop current sensor - SCK3M-200A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC
Open-loop current sensor - SCK3M-200A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC - image - 2
Open-loop current sensor - SCK3M-200A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC - image - 3
Add to favorites
Compare this product


Characteristics

Technology
open-loop
Mounting
fixed, panel-mount
Electrical characteristics
AC, DC
Other characteristics
through-hole, high-accuracy, plate-type
Primary current

200 A

Min.: 0 A

Max.: 200 A

Description

SCK3M-200A is one of the typical model of SCK3M Series, which are a open loop current sensor develops on the basic of open-loop hall effect principle, through hole install(panel installation), window size 10.5*20.5mm. Primary input current rating 200Amps. Characteristics. •Open-loop hall current sensor. •Ipn 200A •Measure range about 3*ipn •Working voltage(supply voltage of the sensor): DC ±12V~ ±15V •Output: ±4V •Linearity: class 1 (±1%) •Accuracy: class1 (±1%) •Square perforation 10*20mm, mainly measure copper conductor current. Full models of SCK3M Series. SCK3M-100A SCK3M-200A SCK3M-300A SCK3M-400A SCK3M-500A We also provide another pcb mounting type SCK3P Series, which is surface PCB board-mounting. Except the mounting method, the technical parameters of SCK3M and SCK3P are same. - Advantage: Non-contact measuring way, excellent accuracy, low power consumption, good current overload capability, easy use, high reliability and long term usage with your system. Application includes but no least in: •Inverters •UPS •SMPS, Control Panels •Power supplies •Combined box •Battery Manage System •Electric vehicles, high-speed rail equipment and so on Certification: UL, ROHS To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
