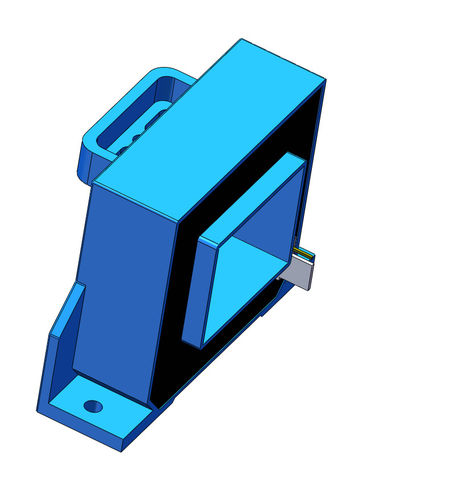

Open-loop Hall effect current sensor SCK18-1500A
fixedpanel-mountDC

Open-loop Hall effect current sensor - SCK18-1500A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC
Open-loop Hall effect current sensor - SCK18-1500A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC
Open-loop Hall effect current sensor - SCK18-1500A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC - image - 2
Open-loop Hall effect current sensor - SCK18-1500A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC - image - 3
Open-loop Hall effect current sensor - SCK18-1500A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC - image - 4
Open-loop Hall effect current sensor - SCK18-1500A - Shenzhen Socan Technologies Co.,Ltd - fixed / panel-mount / DC - image - 5
Add to favorites
Compare this product


Characteristics

Technology
open-loop Hall effect
Mounting
fixed, panel-mount
Electrical characteristics
AC, DC
Other characteristics
through-hole, precision, solid-core
Primary current

Max.: 1,500 A

Min.: 0 A

1,500 A

Description

SCK18-1500A is the typical model of SCK18 Series open loop current sensor, which develops on hall effect principle. There is galvanic isolation between primary and secondary circuit of the sensor, it can measure DC, AC or pulse currents. Main Features: •Ipn 1500A •Measure range about 2500A •Working voltage(supply voltage of the sensor): DC ±15V •Output: ±4V •Linearity: class 1 (±1%) •Accuracy: class1 (±1%) •Panel mounting •Big square perforation with window 30*40 mm, mainly measure cooper conductor current. Advantage and Applications: High accuracy, low power consumption, high liability and strong overload capacity gain it wide applications in Variable Frequency Drives, Switched Mode power supplies, Control Panels, Uninterruptable Power supplies, Inverter device, locomotive and many other industrial areas. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
