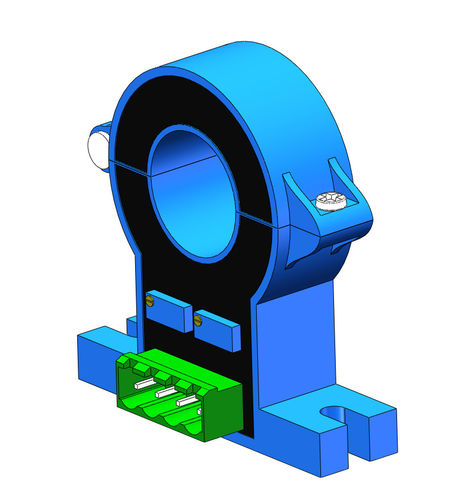

Open-loop current sensor SCY6D-500A
panel-mountclampDC

Open-loop current sensor - SCY6D-500A - Shenzhen Socan Technologies Co.,Ltd - panel-mount / clamp / DC
Open-loop current sensor - SCY6D-500A - Shenzhen Socan Technologies Co.,Ltd - panel-mount / clamp / DC
Open-loop current sensor - SCY6D-500A - Shenzhen Socan Technologies Co.,Ltd - panel-mount / clamp / DC - image - 2
Open-loop current sensor - SCY6D-500A - Shenzhen Socan Technologies Co.,Ltd - panel-mount / clamp / DC - image - 3
Open-loop current sensor - SCY6D-500A - Shenzhen Socan Technologies Co.,Ltd - panel-mount / clamp / DC - image - 4
Add to favorites
Compare this product


Characteristics

Technology
open-loop
Mounting
clamp, panel-mount
Electrical characteristics
DC
Other characteristics
split-core, through-hole, high-accuracy, monitoring
Primary current

Max.: 500 A

Min.: 0 A

Description

SCY6D-500A is the typical model of SCY6D Series, which is a split core current transducer develops on hall-effect, primary current through hole size: 20mm. Non-contact measurement of current from 100Amps to 500Amps. Built in 2 open-able parts, give a flexible installation without mechanical remove of the busbar or the cable. Features: •Ipn 500A •Measure range about 3*ipn •Working voltage(supply voltage of the sensor): DC +12V •Output:2.5V±2.0V •Linearity: class 1 (±1%) •Accuracy: class1 (±1%) •Split core design, primary through hole size 20mm Other model options of SCY6D Series: SCY6D-100A, SCY6D-200A, SCY6D-300A, SCY6D-500A We can customize different current and voltage output according to the users requirements. Applications: Variable Frequency Drives, Switched Mode power supplies, Control Panels, Uninterrupted Power supplies, Inverter device, locomotive and many other industrial areas. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )

Catalogs

No catalogs are available for this product.

See all of Shenzhen Socan Technologies Co.,Ltd‘s catalogs

Other Shenzhen Socan Technologies Co.,Ltd products

Open Loop Current Sensor
