  4. Shenzhen Sunbow Insulation Materials MFG. CO., Ltd

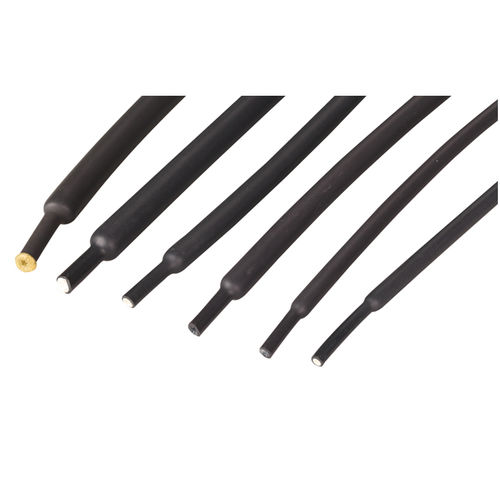

Heat-shrinkable conduit SB-SBRS-(4X) GRF
tubularwire harnesspolyolefin

heat-shrinkable conduit
heat-shrinkable conduit
heat-shrinkable conduit
heat-shrinkable conduit
heat-shrinkable conduit
Add to favorites
Compare this product


Characteristics

Type
heat-shrinkable
Structure
tubular
Applications
wire harness
Material
polyolefin
Protection level
flame-retardant
Other characteristics
double-walled
Diameter

Max.: 18 mm
(0.7 in)

Min.: 4 mm
(0.2 in)

Temperature

Max.: 125 °C
(257 °F)

Min.: -45 °C
(-49 °F)

Description

Working temperature: -45ºC ~ 125ºC Shrink temperature: 70ºC ~ 125ºC Shrink ratio: 4:1 Anti-UV, High flame retardant Structure Automotive wiring harness with high flame retardant double-walled polyolefin and flame-retardant hot melt adhesive composition, the outer polyolefin insulation flame retardant material, the inner layer of hot melt adhesive can buffer mechanical strain and strong sealing. Usage For automotive wiring harness, the product is designed to meet the basic conditions of low temperature and high rate of shrinkage, to improve the flame retardant properties and to overcome the environmental impact of higher requirements on the wiring harness. Standards Production standards: UL224, CAN/CSA C22.2 NO198.1-99 Flame retardant: ASTM D 2671 B method
