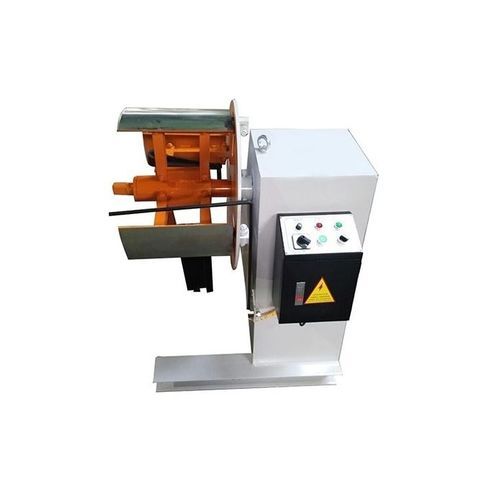

Manual decoiler MT series

motorizedsheet

Manual decoiler machine is located at the beginning of the metal sheet stamping line, It is an assistant machine for roll forming machines, slitting machines and cutting to length machines which can supply the material to these lines. Raw Material Type: Suitable for vary kind of coil material, such as Galvanized steel, Stainless steel, CR Steel, HR Steel, Galvanized steel, Stainless steel,Aluminum, Cooper etc. Applicable Coil Width: 20mm-1300mm Applicable Coil Thickness: 0.3-3.5mm Coil Inner Diameter: 450-530mm Coil Outer Diameter: 1200mm Speed: 15m/min Pressing arm and coil car for optional Applications: Pressing Line/Metal Stamping Line/Forming Line Motorized Manual decoiler is design for the low weight metal coils uncoiling, it's located at the beginning of a process line used to hold and safely pay off or uncoil the steel strip,usually configured with the sheet metal straightener, NC servo feeder machine and power press machine. Motorized Manual decoiler can uncoiler the coil strip from 70mm to 800mm width, from 0.2mm to 6mm thickness and load the weight up to 2tons. Usually it's suible for the inner diameter 450-530mm, and outer diameter 120Omm. What's more, if the thickness over the 3mm thickness, we suggest add the pressure arm to avoid injury the operator due to the excessive flexibility of materials. Decoiler machine is suitable for all kinds of metal sheet stamping, such as the hardware parts, home appliances, furniture hardware, motorcycle accessories, mobile phone accessories, computer accessories and so on.
