Mechanical press line stampingdrawingstraightening
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Function
- stamping, drawing, straightening, for molding, blanking
- Control
- semi-automatic, PLC-controlled
- Other characteristics
- servo-driven, with automatic feeder, continuous
- Applications
- for steel, for aluminum, for the automotive industry, for composite materials, blank, process, for production
- Force
Max.: 200 tf
Min.: 15 tf
Description

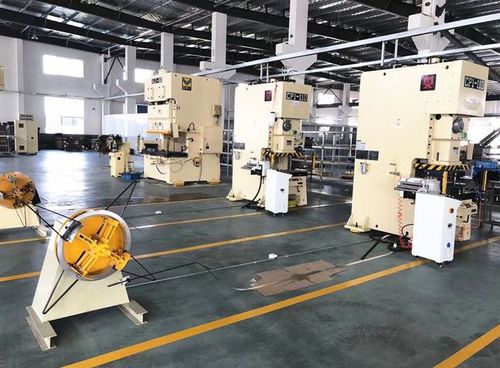

Sunrui machine provides all kinds of reliable and professional solutions for metal sheet stamping line. In some industry, for thin materials with rough leveling requirements, the integral of metal sheet stamping lines include a decoiler, a servo feeder machine, a mechanical press machine or shear machine and a progressive die, some time, also include a straightener machine for leveling the strips and a unwinder machine for reCoiling the coil scraps.
Material Thickness: 0.1-2.0m
Coil width: 20-300mm
Coil line configuration
Decoiler Machine MT/MT-F
Coil straightener machine (For optional) TL/SNL/STL
Coil feeder RNC/NCE/RF
Mechanical press machine APA
Progressive(For optional)
Unwinder machine MT/MT-F(For optional)
The configuration of Precision Pressteed stamping Line.
Step-1: Decoiler machine, Loading coil and uncoilling coil.
Step-2: Straightener machine, leveling the coil strip.
Step-3: Coil Servo Feeder machine, Feed coil strips to press machine.
Step-4: Stamping press machine with the progressive die, pressing to the end product.
Catalogs
No catalogs are available for this product.
See all of Shenzhen Sunrui Machinery Co., Ltd.‘s catalogsOther Shenzhen Sunrui Machinery Co., Ltd. products
