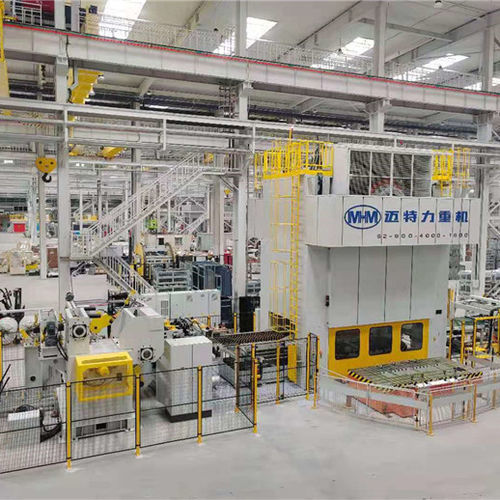

Hydraulic press line
mechanicalelectricforming

hydraulic press line
hydraulic press line
hydraulic press line
hydraulic press line
hydraulic press line
hydraulic press line
hydraulic press line
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, mechanical, electric
Function
forming, stamping, for molding, cutting, blanking
Structure
compact, frame, double
Control
automatic, PLC-controlled
Other characteristics
servo-driven, transfer, with automatic feeder, continuous
Applications
for steel, for aluminum, for heat exchanger plate production, for the automotive industry, blank, process, for production
Weight

20,000 kg
(44,092 lb)

Overall width

Max.: 1,800 mm
(71 in)

Min.: 200 mm
(8 in)

Description

A Coil Press blanking line is a process where square, round or rectangular parts are mechanically or hydraulically pressed or stamped out of a coil. A Press blanking is sometimes also referred to as a flat sheet of material cut to a very precise length and corner-to-corner tolerance. ts main purpose is to obtain better dimensional accuracy, but secondary purposes include squaring the edge and smoothing the edge. Blanked parts can be shaved to a high accuracy Material Type: Cold rolled plate, Hot rolled pickling plate, High strength cold rolled plate, Galvanized plate, High strength hot rolled plate etc. Material Thickness: 0.8-3.6mm Yield strength: 245-980 N/mm2 Tensile Strength: 392-1180 N/mm2 Coil inner diameter: D610mm Coil outer diameter: 01200-01800mm Coil line configuration Compact Coil Feed line MFL4-GF/MFLS Stamping Press Machine Usually The coil blanking lines are commonly used in the automotive industry, the blanking line is composed by a coil feeding line,a press and a stacking system entrusted with the sheet stacking and the successive distribution to the various forming presses installed in the factory. The coil press blanking is the basic equipment of every large press factory. However, the use of blanking lines can also be profitable for smaller mills. By separating the cutting and forming processes, you can create more room in your forming press for other processes, or you can reduce the force of the forming press. Due to optimal material utilization, you can also minimize your material requirements while greatly increasing the flexibility of the production process.

VIDEO
