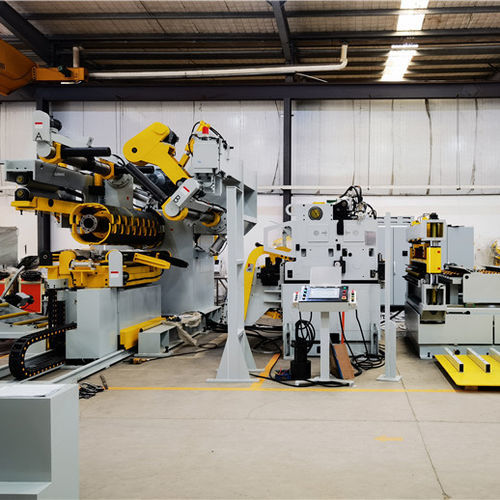

Hydraulic press line

mechanicalelectricpneumatic

A multi-blanking line produces flat sheet metal from coil stock by feeding it through a decoiler straightener and feeder machine. As the coiled metal moves through a straightener or leveler, it's flattened by opposing, and the coil strip is sent to the shear equipment according to the set length and speed, the cutting length pieces will be transferred by conveyor belt and deliver to the stack system. Material Type: Cold rolled plate, Hot rolled pickling plate, High strength cold rolled plate, Galvanized plate, High strength hot rolled plate etc. Material Thickness: 2.0-12mm Coil Width: 200-1800mm Yield strength: 245-980 N/mm2 Tensile Strength: 392-1180 N/mm2 Coil inner diameter: D610mm Coil outer diameter: 91200-01800mm Loading weight: 20000KG Coil line configuration Compact Coil Feed line MFL Hydraulic Shear Conveyor Belt Automatic Stack System Usually the blanking line is composed by a coil feeding line,a hydraulic shear machine and a stacking system entrusted with the sheet stacking and the successive distribution to the various forming presses installed in the factory. This blanking line can process comprehensive range operations, applicable metal coil from 2.0mm to 12mm thickness, and width from 200mm to 1800mm.This line has a high synchronization between each workstation, which achieves stable working performance. Integrated with servo control system, it's a high-level industrial automation line, which is easy operation and reduced operational Costs.
