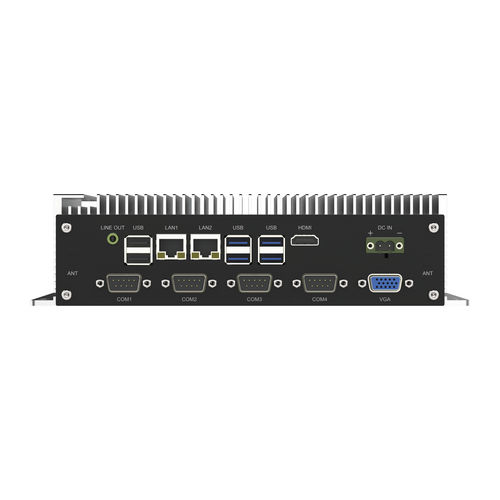

Box PC TBOX-2800

embeddedwall-mountedIntel® Celeron®

● DDR4, max. up to 16GB memory, 2.5 ”SATA and mSATA storage; ● Wide voltage DC 9 ~ 24v input, with over-current and over-voltage protection functions; ● Industrial operating temperature range of -20 ~ + 70C; ● Robust and compact design with dimensions 236.5 x 150 x 60 (mm) ● Optional with 3G / 4G / LTE, Wi-Fi / Bluetooth and other industrial modules; ● Rich IO design: 2* GLAN, 6* COM, 4* USB3.0, 4* USB2.0, 1* HDMI, 1* VGA, Line-out, 1* GPIO + 1* CAN (optional) TAICENN TBOX-2800 is a newest release high-performance fan-less industrial Box PC model, it adapts Intel Whiskey lake Celeron 4205U 1.8Ghz CPU, having advanced computer performance and low power consumption. TBOX-2800 storage can support 1 *mSATA and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN (Intel I211AT) ports, 4* USB 2.0 ports (max. up to 6*USB2.0), 4* USB 3.0 port, 6* RS232 (Optional with 1* RS485/RS422); The power input is DC 9~24V voltage, and has over-current, over-voltage and reverse-polarity protection. TAICENN TBOX-2800 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system. TAICENN TBOX-2800 operating temp. is -20℃~+70℃, can be suitable for longer-time operating and harsh environment industrial application projects, TAICENN TBOX-2800 can be compatible with Windows10, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.
