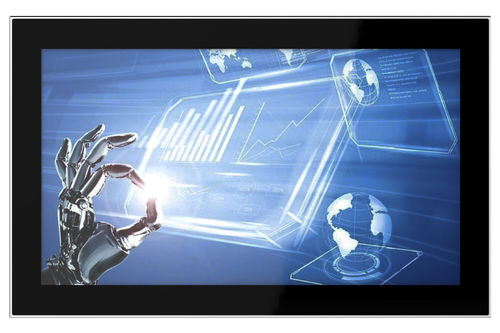

PCAP capacitive touch screen panel PC TPC-DCM156HC1

15.6"full HDIntel Baytrail J1800/1900

● Multi-points projective capacitive touch, EETI controller; ● Fanless & slim design, front IP65 rated protection; ● Panel mount, support VESA 75/100 mount; ● DC 9~24V input, with over-current, over-voltage protection; ● 2*Intel GLAN, 2*RS232 (Optional 1*RS485), 4*USB (1*USB3.0); ● Expansional with 3G/4G/LTE, Wi-Fi/BT wireless; ● Optional with 2 x 2w mini speaker; ● I/O: 4x USB, 2x GLAN, 2x COM, 1x HDMI, Audio. TAICENN TPC-DCM156HC series is a low power-consumption, Fan-less designed, enhanced stability and reliability industrial 15.6-inch High resolution, Full HD 1920 x 1080 Touch Panel PC product. It adapts Intel Baytrail J1900/J1800 processor. TPC-DCM156HC series storage can support 2.5 SATA and mSATA interface, HDD or SSD. The design uses a multi-point (10- points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards. The TPC-DCM156HC uses full-sealed box construction, and it can prevent dust from entering the device system, is compatible with Win7, Win8, Win embedded, WIN10, Linux OS, and it also has a good compatibility with customized applications and software programs.
