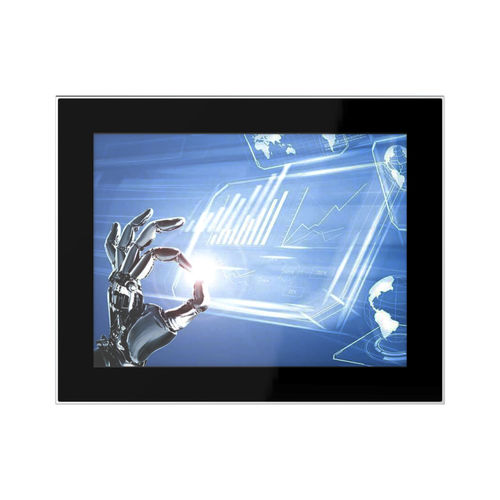

TFT LCD panel PC TPC-PC121C

LED backlightcapacitive touch screenmultitouch screen

● Panel mount, support VESA 75/100 mount; ● DC 9~24V input, with over-current, over-voltage protection; ● 2*Intel GLAN, 6*RS232 (Optional 1*RS485), 5*USB (1*USB3.0); ● Expansional with 3G/4G/LTE, Wi-Fi/BT wireless; ● I/O: 5x USB, 2x GLAN, 6x COM, 1x HDMI, 1x VGA, Audio. TAICENN TPC-PC121C series is a low power-consumption, Fan-less designed, enhanced stability and reliability industrial 12.1-inch Touch Panel PC product. It adapts Intel Baytrail Celeron J1900/J1800 processor. TPC-PC121C series storage can support 2.5 SATA and mSATA interface, HDD or SSD. The design uses a multi-point (10- points) projective capacitive touch screen (Optional with high-temp. five-wires resistive touch, or no touch), and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards. The TPC-PC121C uses full-sealed box construction, and it can prevent dust from entering the device system. The TAICENN TPC-PC121C is compatible with Win7, Win8, Win embedded, Win10, Linux OS, and it also has a good compatibility with customized applications and software programs. Hardware & system BIOSSPI AMI EEI BIOS CPUIntel Baytrail J1900 processor, Quad-core 2.0Ghz, burst to 2.42Ghz MemorySO-DIMM, DDR3L, max. up to 8GB Storage1*2.5“ SATA + 1*mSATA Graphic cardIntel HD Graphics Gen7 Network2* Intel 1211 AT (Optional 3G/4G/Wi-Fi) AudioOn-board Realtek ACL 282 audio controller Expansion1* Full size Mini-PCIe slot
